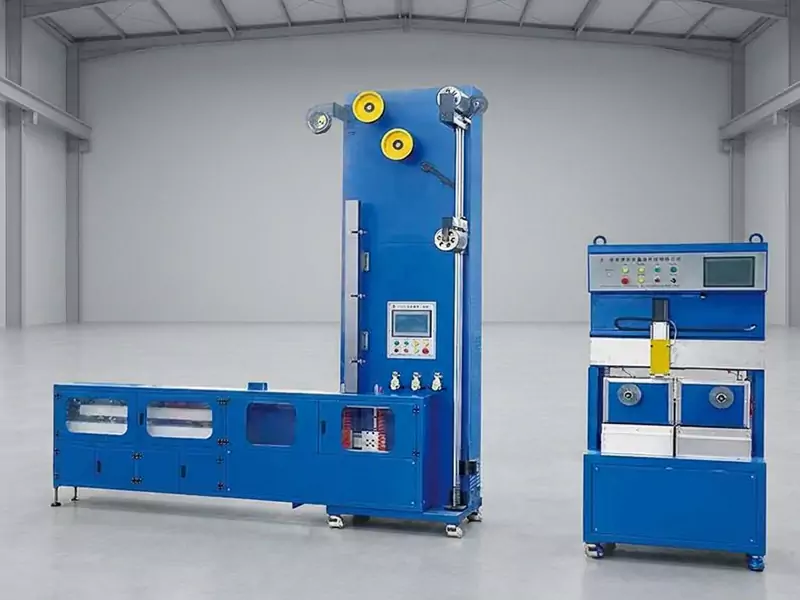

Photovoltaic Vuam Sawb Rolling Mill

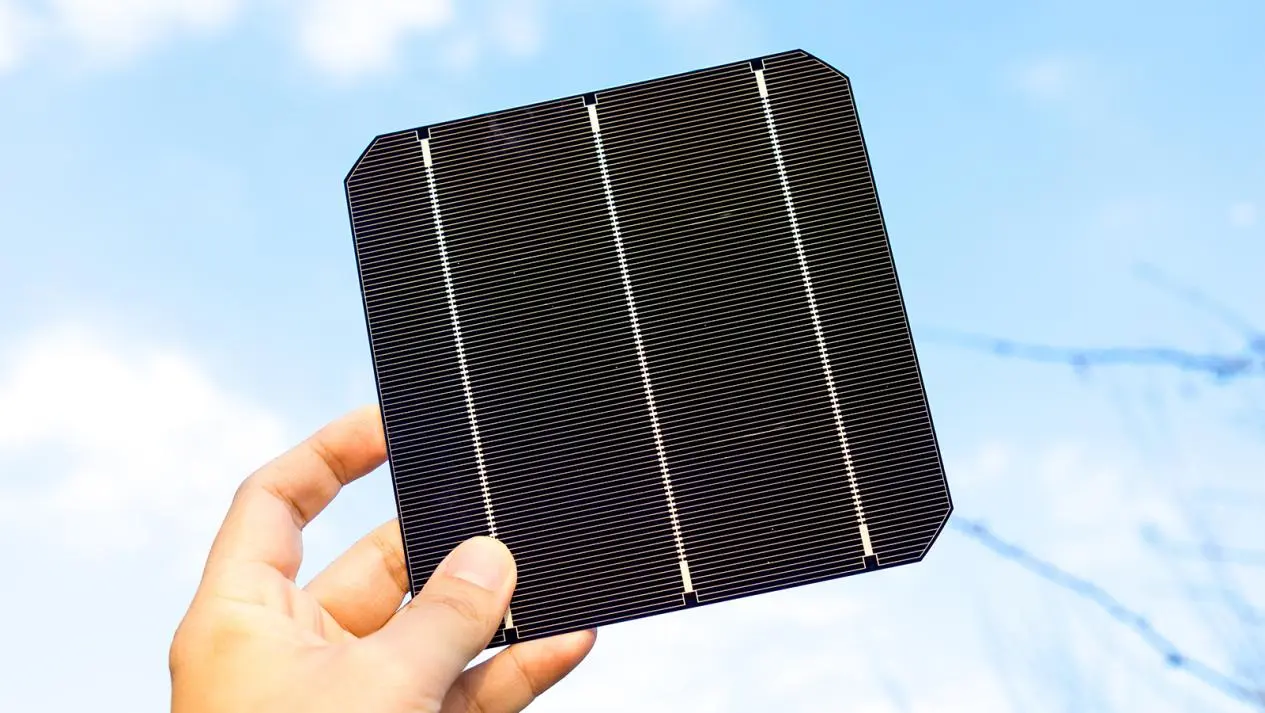

Tuam Tshoj photovoltaic vuam sawb dov zeb ua los ntawm GRM Rolling Mill Hoobkas yog ib qho tshwj xeeb ca hlau khoom siv los txuas hnub ci hlwb hauv photovoltaic modules. Nws yog tsim los ntawm tooj liab substrate thiab nto txheej. Copper substrate feem ntau yog high-purity oxygen dawb tooj liab lossis T2 liab tooj liab, nrog cov ntsiab lus tooj liab ≥ 99.99% thiab conductivity ≥ 98%. Nws muaj cov conductivity zoo thiab qee lub zog, uas tuaj yeem ua kom muaj kev sib kis tau zoo.

Xa lus nug

Product Description

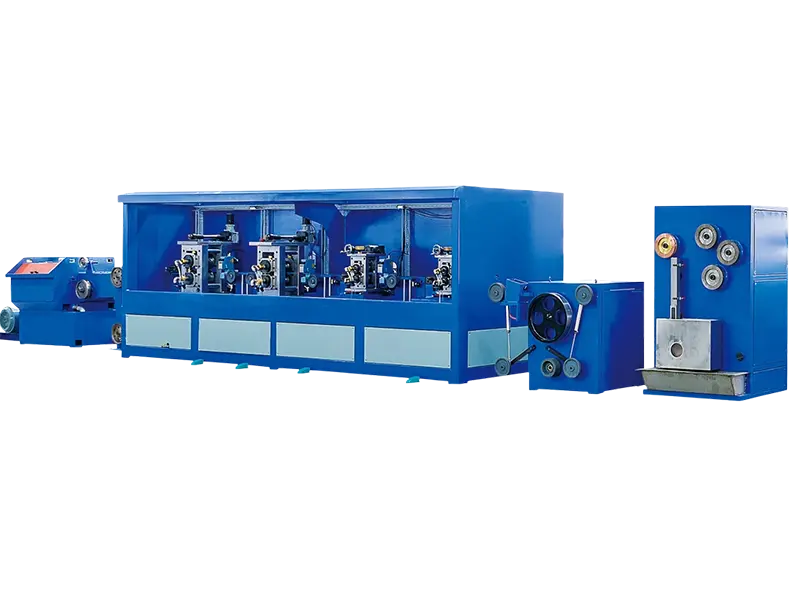

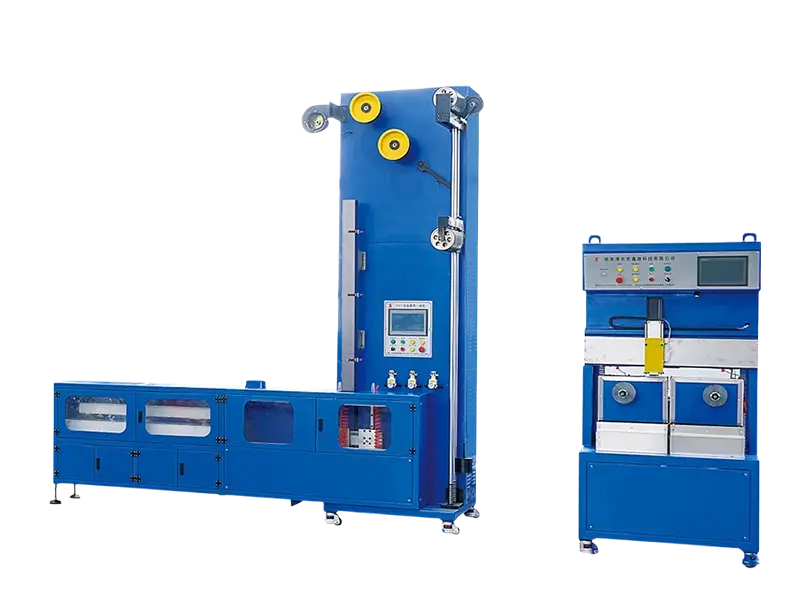

Qhov ruaj khov Photovoltaic Vuam Sawb Rolling Mill los ntawm GRM Rolling Mill muab kev sib xyaw tshuab ntawm nws tus kheej tsim los ntawm peb lub tuam txhab yog cov cuab yeej ntse ntse tsim tshwj xeeb tsim rau kev lag luam photovoltaic. Nws koom ua ke cov tub ntxhais ua haujlwm zoo xws li kev ua haujlwm tsis siv neeg xaim-txhim kho, ntau qhov kev sib tw precision dov, ntse tswj nruj, nruam annealing thiab ob-chaw nres tsheb winding.

Raws li kev lag luam-ua kev kub ceev, high-precision busbar integrated tshuab, cov cuab yeej no tuaj yeem paub txog cov txheej txheem tag nrho ntawm cov khoom siv los ntawm ¢ 3 hli tooj liab raw cov ntaub ntawv rau cov khoom tiav (dav 3 ~ 8mm, thickness 0.2 ~ 0.45mm), nrog rau siab tshaj plaws kev khiav hauj lwm ceev ntawm 250m / min, zoo kawg nkaus phim cov kev cai nruj heev ntawm cov khoom siv hluav taws xob loj, kev ruaj ntseg thiab kev ua haujlwm siab.

Yam txheej txheem ntws

1. Flat hlau dov txheej txheem (muaj feem xyuam rau photovoltaic vuam ribbon-convex ribbon integrated tshuab)

Them tawm hlau - ntau hom hlau kos duab - precision calendering - online nrhiav thiab tswj - ib hom duab kos - CNC stripping - high-speed tinning - nruam annealing (tiv thaiv nitrogen) - tas li nro winding

Technical Parameters

PV Ribbon Khoom	Parameter	Kev lag luam Txuj	Lwm lub tuam txhab	GRM
Standard Interconnect PV Ribbon	Txheej thickness	± 5 hli	25 ± 5 hli	25 ± 3 hli
	Cov khoom tiav thickness	20.01mm 20.00 Nws	20.015 hli	20.01mm 20.00 Nws
	Cov khoom tiav dav	± 0.05 hli	± 0.05 hli	± 0.05 hli
	Tensile zog	≥110Mpa	≥150Mpa	≥170Mpa
	Elongation	≥15%	≥25%	≥25%
	Yield zog	≤70Mpa	≤70Mpa	62,68 Mpa
	Sickle khoov	≤ 5mm / m	≤ 4mm / m	≤ 4mm / m
	Kev tiv thaiv	0.30Ω * 0.30Ω * mm / m	0.02-0.023Ω * hli / m 0.02-0.023Ω *	0.0230 Ω * mm / m 0.0230Ω *
	Kev laus tsis kam	-	-	DH 2000

Technical zoo

High precision: ± 0.01mm thickness kam rau ua, yoog raws cov qauv nruj ntawm photovoltaic vuam strips

Kev ua haujlwm siab: 250m / min high-speed dov, zoo Photovoltaic Vuam Sawb Rolling Mill muab

Multi-material adaptation: sib xws nrog tooj liab, aluminium alloy, thiab lwm yam, muaj zog scalability

Nto roughness Ra≤0.2μm (txo qhov kev pheej hmoo ntawm roj teeb tawg)

Tej kev siv:

• Photovoltaic teb: ntau lawm ntawm photovoltaic vuam ribbon thiab busbars los pab cov khoom siv hluav taws xob zoo.

• Kev cai ua cov busbars tshwj xeeb (daim duab peb sab / trapezoidal cross-section)

• Kev lag luam hluav taws xob: high-precision ca hlau ua, tsim rau transformers, inductors thiab lwm yam khoom

Customized tsim thiab kev pab cuam tom qab muag

• Cov kev pabcuam Customized: tsis xws li tus naj npawb ntawm cov ntawv hla, cov khoom pwm, thiab cov duab nrawm tuaj yeem hloov kho raws li cov kev xav tau tshwj xeeb ntawm cov neeg siv khoom.

• Cov cuab yeej hloov kho dua tshiab: txhawb qhov sib ntxiv ntawm cov pass modules nyob rau theem tom ntej kom tau raws li qhov xav tau ntawm kev nthuav dav lossis cov txheej txheem hloov kho.

• Tus nqi tu: Qhov ntau dhau, cov pwm thiab cov nqi kho mob ntau dua, tab sis kev ua haujlwm ntawm ib qho kev ua haujlwm tau zoo dua qub. Nws raug nquahu kom xaiv qhov tsim nyog raws li qhov ntsuas ntau lawm.

Zoo siab txais tos hu rau peb thiab tau txais cov ntaub ntawv xov xwm ntxiv txog Photovoltaic Welding Strip Rolling Mill!
