CTC Nruam Transposed Conductor Kab

GRM Rolling Mill CTC Nruam Transposed Conductor Line boasts ruaj khov thiab siab precision, txhawb kev hloov ceev thiab customized configurations, thiab yog dav siv rau precision hlau ntau lawm nyob rau hauv transformer, tshiab zog tsheb, tsev, kho mob, thiab aerospace hluav taws xob teb. Tiv tauj peb!

Xa lus nug

Product Description

GRM Rolling Mill's CTC Continuously Transposed Conductor Line tsis tu ncua los ntawm 5 txog 47 strands los ntawm txheej txheej txias-ua haujlwm, tsis muaj oxygen tsis muaj pav ca tooj liab xov hlau nrog insulating kua roj vanish thiab qhwv lawv nrog insulating ntawv thiab lwm yam ntaub ntawv rwb thaiv tsev. Tom qab ntawd cov conductors raug tso tseg rau hauv ib qho kev sib cog lus thiab ua tib zoo teeb tsa cov duab plaub hla ntu tus neeg xyuas pib pob.

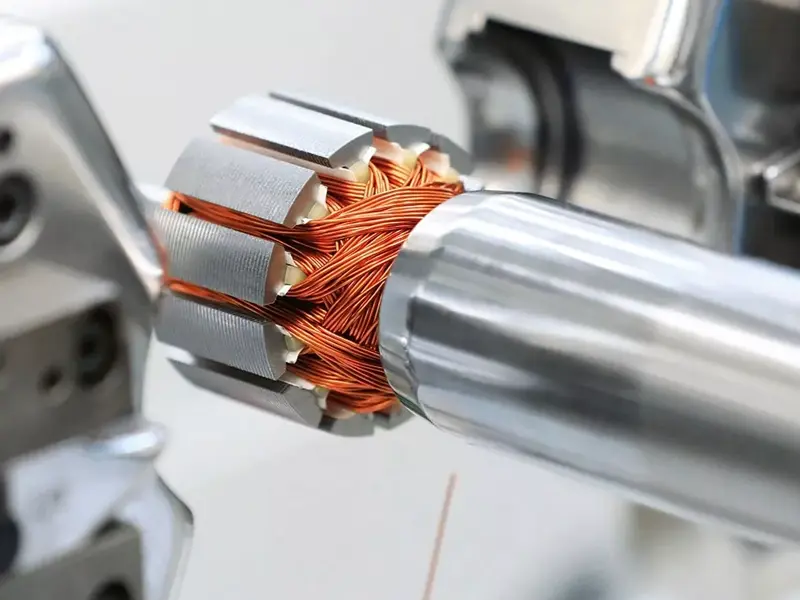

CTC Continuously Transposed Conductor Line for EV components

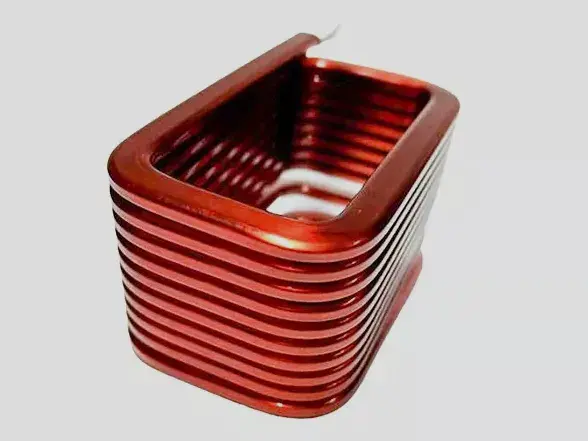

CTC Continuously Transposed Conductor Line for Household appliances

CTC Continuously Transposed Conductor Line for Medical devices

CTC Continuously Transposed Conductor Line for Aerospace electrical assemblies

Daim ntawv thov kev lag luam

1. transformer windings

2. EV Cheebtsam

3. Cov khoom siv hauv tsev

4. Cov khoom siv kho mob

5. Aerospace hluav taws xob sib dhos

Main Txheej Txheem Flow

Them tawm → Parallel Guide → Precision Transposition → Rwb thaiv tsev qhwv (yeem) → Nqa-up

Technical Specifications

Ib tus neeg xyuas pib Parameters	Min	Max
Thickness	1.15 hli	3.15mm 3
Dav	3.0mm ib	12.5mm 3
Qhov dav / Thickness ratio	3:1 ua	8:1 ua
Enamel Thickness	0.08mm ib	0.18mm ib

CTC Conductor Parameters	Min	Max
Ntau lawm ceev	1 m / min	15m / min
Number of conductors	5 (tseem ceeb)	47 (zeeg)
Qhov siab (mm)	5.0	80.0
Dav (mm)	6.0	26.0
Transposition Pitch (mm)	20	280
Qhov siab / qhov dav	1:3 ua	8:1 ua
Transposition Push Ceev	colspan = "2"	150 zaug / min

Cov yam ntxwv tseem ceeb

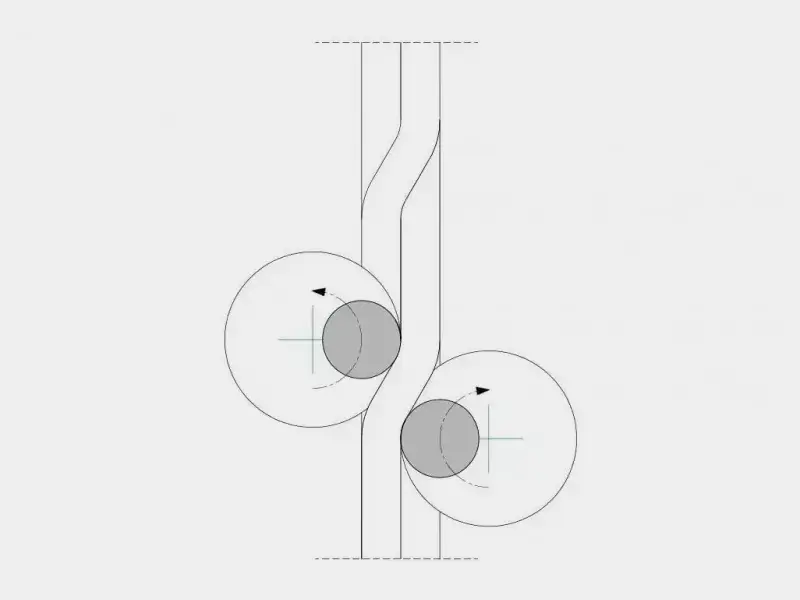

1. Precision transposition system rau cov neeg xyuas pib ruaj khov

2. CTC Continuously Transposed Conductor Line tuaj yeem ua tau zoo nrog cov enamel-coated ca copper conductors

3. Kev xaiv rwb thaiv tsev ntawv wrapping unit

4. Servo-tswj nro thiab winding system

Technical Advantage

GRM cov chaw tsim khoom yog nruab nrog cov txheej txheem online thiab tshuaj xyuas cov cuab yeej muaj peev xwm ua cov hlau nplaum tshwj xeeb nrog ntau txheej txheej txheej txheej. Kev ua cov txheej txheem tshiab hauv tib qhov chaw txhim kho hluav taws xob ua haujlwm thiab txhim kho tus neeg xyuas qhov zoo. Kev soj ntsuam online txuas ntxiv ntxiv kom paub meej qhov sib xws thiab kev ua haujlwm ntev mus ntev.

FAQ

1. CTC tus neeg xyuas pib yog dab tsi?

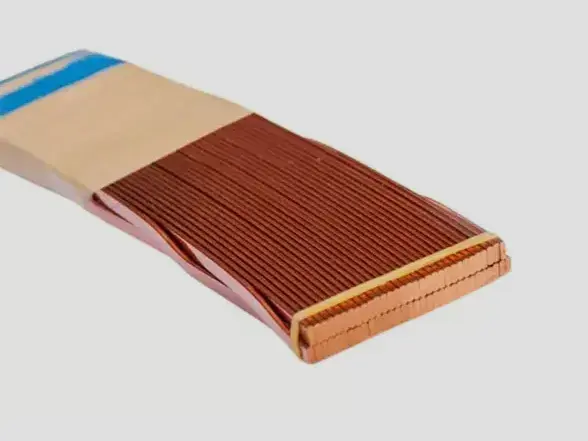

CTC (Continuously Transposed Conductor) yog ib qho khoom siv hluav taws xob sib txuas ua los ntawm kev txuas ntxiv mus txuas ntxiv ntau yam insulated ca conductors kom txo qis tam sim no poob hauv transformers.

2. Cov ntaub ntawv dab tsi tuaj yeem ua rau kab?

Cov kab no yog tsim los rau enamel-coated oxygen-dawb ca tooj liab conductors thiab lwm yam hlau nplaum hlau cov ntaub ntawv.

3. Lub tshuab puas tuaj yeem hloov kho?

Yog lawm. GRM muab kev tsim kho raws li tus neeg xyuas pib qhov ntev, ntau lawm ceev, rwb thaiv tsev qauv, thiab cog layout.

Npaj los txhim kho koj cov hlau nplaum hlau ntau lawm?

Hu rau GRM rau kev kho CTC tus neeg xyuas pib tsim cov kev daws teeb meem kom haum rau kev ua tiav cov xaim xaim, cov ntawv thov kev hloov pauv, thiab cov hlau nplaum zoo tshaj plaws.
