High-Precision Micro Flat Hlau Rolling Zeb

Tuam Tshoj High-Precision Micro Flat Hlau Rolling Mill, tsim los ntawm GRM Rolling Mill, yog cov khoom siv high-end precision machining tshwj xeeb tsim los rau thinning thiab tsim cov hlau tsis zoo (xws li tooj liab ntshiab, nyiaj-plated / tin-plated / nickel-tooj liab hlau) hauv teb xws li cov xov hlau kho mob, cov ntaub ntawv hluav taws xob thiab cov cuab yeej siv siab kawg. Cov cuab yeej no ua ke nrog kev sib tw dov, kev txawj ntse tswj, thiab kev ua haujlwm siab, ua rau nws yog ib qho tseem ceeb ntawm cov cuab yeej siv rau kev ua tiav kev hloov pauv hauv tsev thiab kev kho dua tshiab ntawm micro-fine ca xov hlau.

Xa lus nug

Product Description

GRM Rolling Mill yog lub siab-kawg High-Precision Micro Flat Hlau Rolling Mill, ua haujlwm zoo txuas ntxiv ntawm ultra-nplua thiab ntxiv-nplua tsis-ferrous hlau ca hlau. Nws koom nrog precision dov, ntse tswj, thiab kev tsim khoom tas mus li, tsom mus rau kev ua kom tau raws li cov kev cai nruj ntawm cov ntaub ntawv hluav taws xob, cov cuab yeej precision, tshwj xeeb cable, thiab high-end connector industries rau micro-nplua ca xov hlau (xws li tooj liab ntshiab, nyiaj-plated / tin-plated / npib tsib xee-tooj liab hlau) nyob rau hauv cov nqe lus ntawm dimensional precision, mechanical zog, nto zoo.

Qhov no ruaj khov High-Precision Micro Flat Hlau Rolling Zeb los ntawm GRM Rolling Mill Hoobkas tshwj xeeb yog tsim los rau cov precision thinning thiab winding ntawm cov xov hlau kho mob, stably ua ultra-nplua ca xov hlau xws li 0.04mm txog 0.15mm, nrog rau siab tshaj plaws txhua yam ceev ntawm 1500 meters ib feeb. Nws cov hom phiaj tsim qauv tseem ceeb yog ua kom muaj kev ruaj ntseg hauv cov txheej txheem ntau lawm, zoo sib xws ntawm qhov sib xws, thiab kev ua haujlwm ntev tsis muaj kev cuam tshuam, ua rau nws yog ib qho tseem ceeb ntawm cov cuab yeej siv los txhim kho qhov zoo thiab muaj peev xwm ntawm cov xov hlau micro.

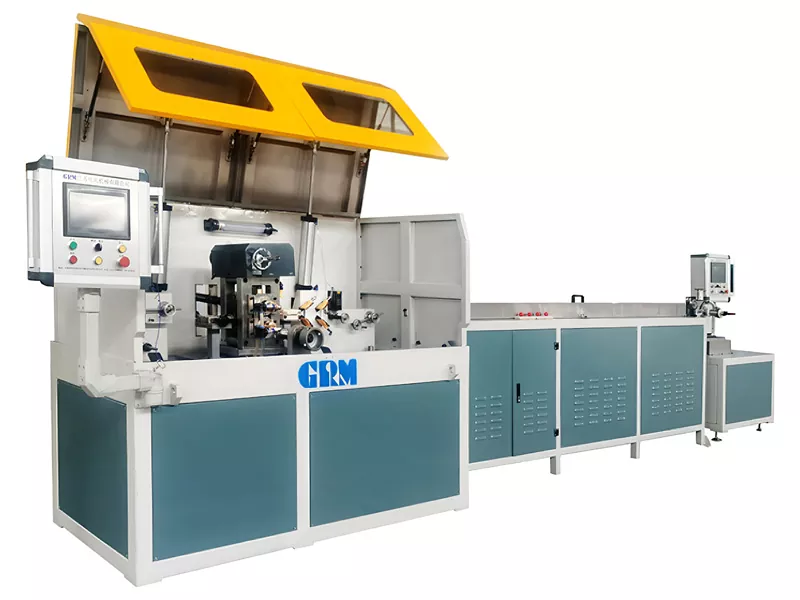

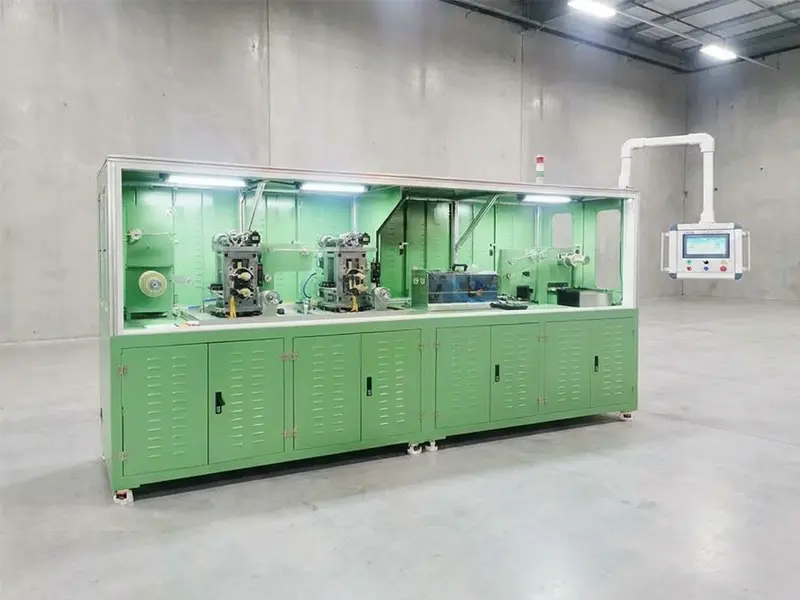

Micro flat wire rolling mill producing 0.04–0.15 mm ultra-fine flat wire

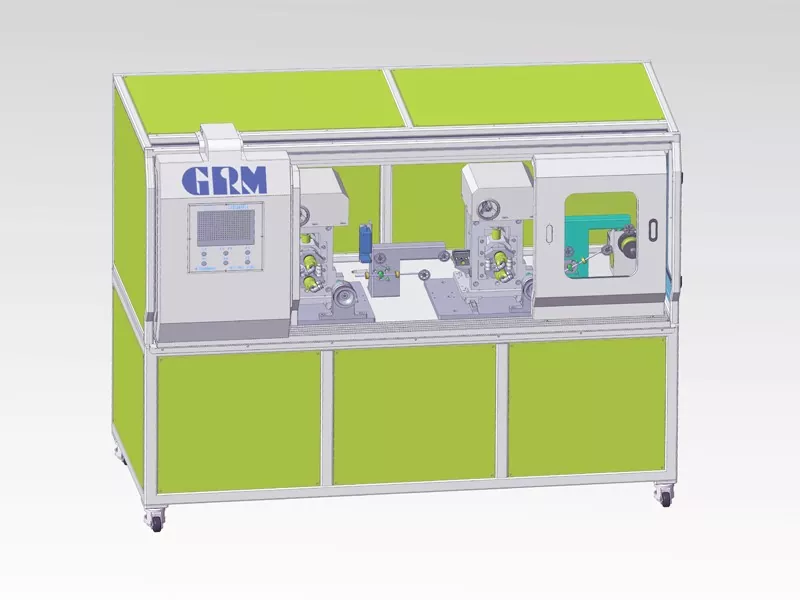

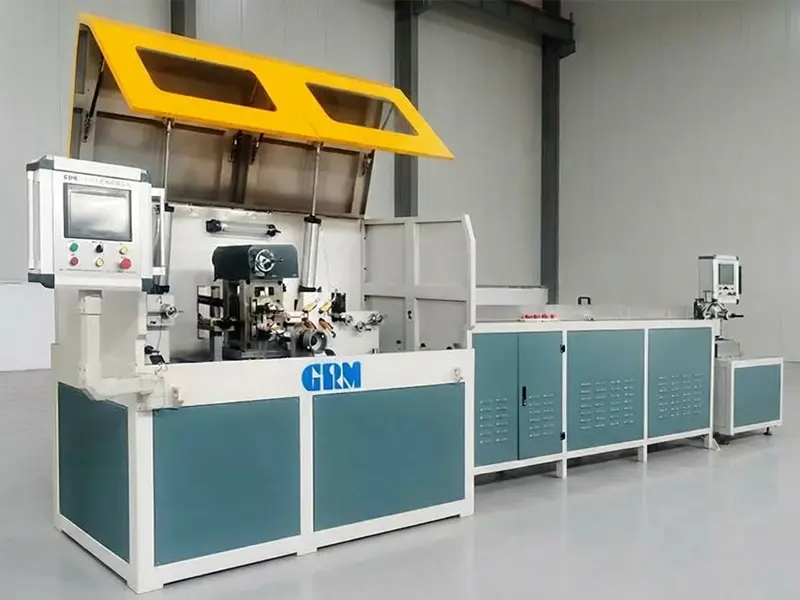

Rigid frame and precision roller system of micro flat wire rolling mill

Qhov Zoo Tshaj Plaws

Lub thav duab nruj thiab qhov tseeb rau cov menyuam ua kom cov yob deformation tsawg heev nyob rau hauv kev kub ceev dov, ua tiav micron-theem (µm) thickness thiab dav kam rau ua tswj.

Cov txheej txheem ua kom zoo lubrication thiab cua txias ua kom lub ntsej muag ci, tsis muaj kev puas tsuaj, ua tau raws li cov qauv siab uas yuav tsum tau ua rau electroplating tom ntej los yog daim ntawv thov ncaj qha.

Cov hlau winding system yog tsav los ntawm lub servo lub cev muaj zog, tso cai rau qhov tseeb qhov chaw ntawm lub suab nrov winding thiab thim rov qab cov ntsiab lus, thiab kev hloov kho tsis siv neeg raws li qhov ceev winding, ua kom zoo zoo thiab nruj winding thiab tiv thaiv coil vau thiab tangling.

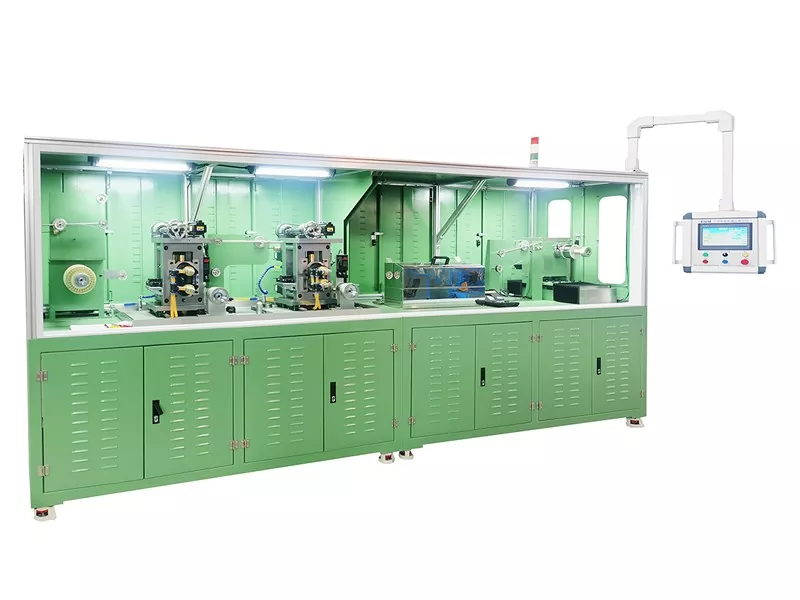

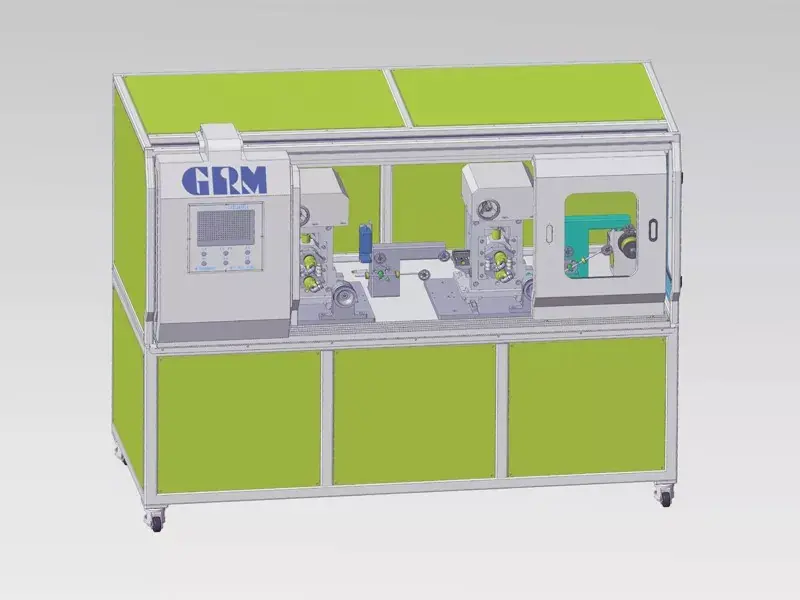

Precious metal micro flat wire rolling mill

Precious hlau dov zeb

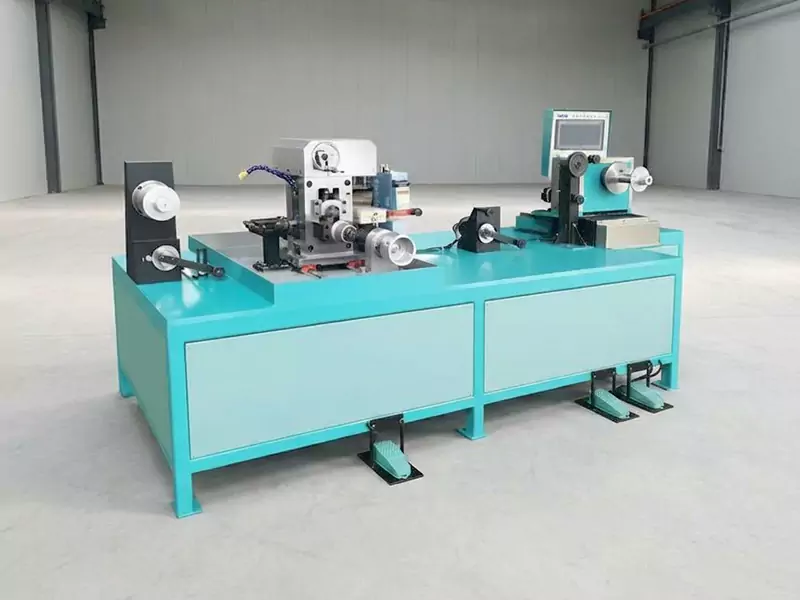

Precision micro filament twin-rolling mill

Precision micro filament twin-rolling zeb

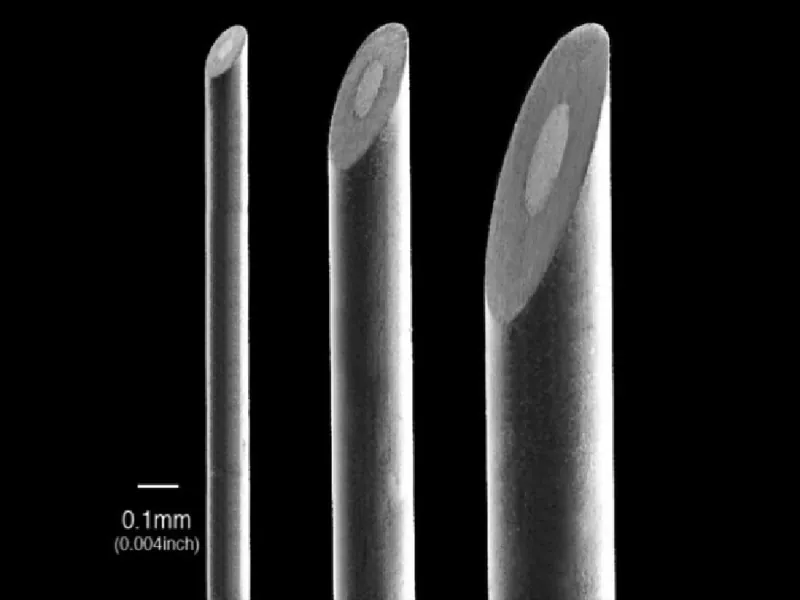

Fine flat wire produced by micro rolling mill

Fine hlau hlau

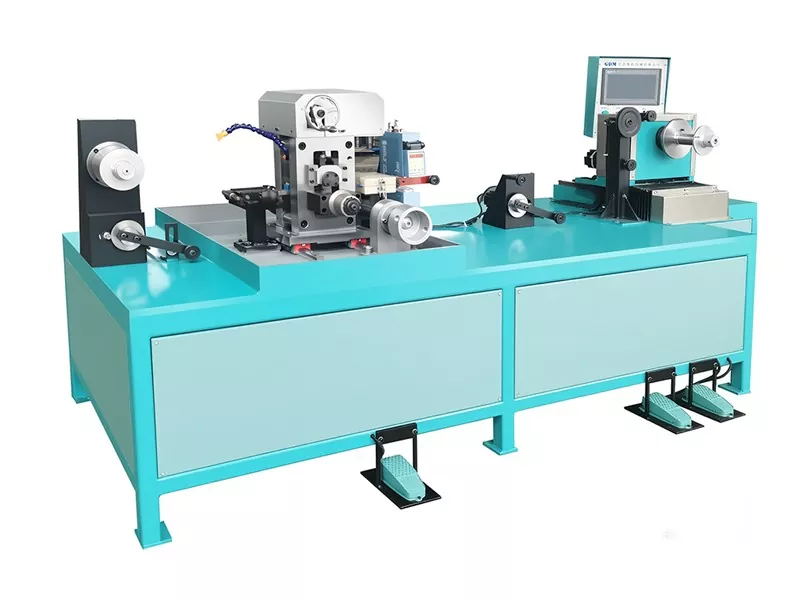

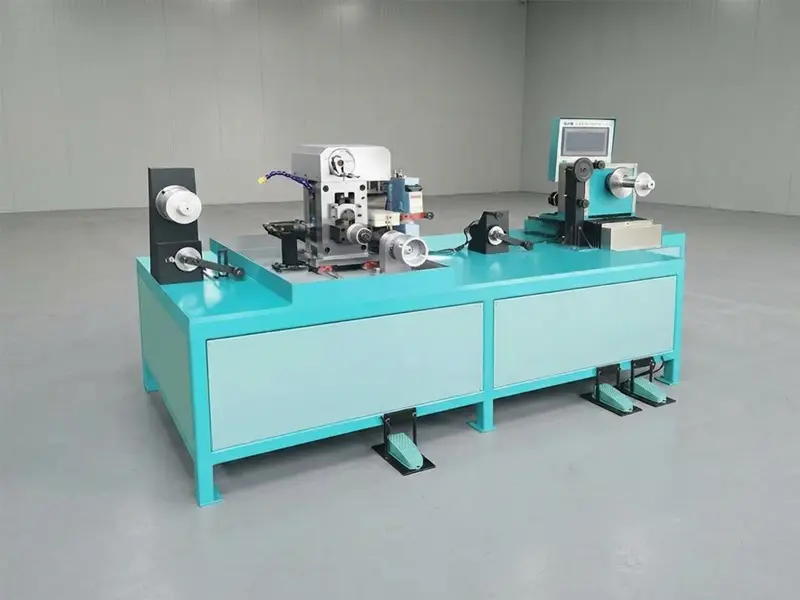

Medical precision fine flat wire rolling mill

Kev kho mob precision zoo tiaj hlau dov zeb

Technical Parameter Summary

Daim ntawv thov khoom siv	Rau kev kos duab tas mus li thiab muag ntawm cov tooj liab dawb huv, nyiaj-plated tooj liab hlau, tin-plated tooj liab hlau, thiab npib tsib xee-plated tooj liab hlau
Inlet Hlau Diameter	Φ0.15mm-Φ0.7mm
Ua tiav Hlau Dia	Φ0.04mm-Φ0.15mm
Qhov siab tshaj plaws hlau ceev	1500m / min
Txoj kev coj	Tsis siv neeg ob-reel non-stop take-up, tsis siv neeg loading thiab unloading ntawm reels
Hlau Laying Control	Servo lub cev muaj zog tswj, hloov kho kom haum
Yeem Configuration	In-line nruam annealing tshuab

Cov txheej txheem yooj yim Configuration Options

Integrated In-line Annealing Unit (xaiv tau): High-Precision Micro Flat Hlau Rolling Mill tuaj yeem ncaj qha nrog cov cuab yeej txuas txuas ntxiv ntawm cov kab dov kom ua tiav cov kev kho mob tam sim ntawm cov hlau.

Annealed hlau txoj kab uas hla: Φ0.04-Φ0.15mm
Qhov siab tshaj plaws annealing ceev: 1500 m / min (synchronized nrog dov ceev)
Qhov siab tshaj plaws annealing voltage: DC 60V

Qhov kev teeb tsa no tshem tawm cov kauj ruam offline annealing, txo qhov kev pheej hmoo ntawm oxidation nto thiab kev puas tsuaj los ntawm kev ua haujlwm thib ob thiab ua kom yooj yim rau cov txheej txheem ntau lawm.

GRM Rolling Mill High-Precision Micro Flat Wire Rolling Mill tsis yog tsuas yog lub tshuab ua haujlwm xwb, tab sis kuj yog ib tus khub zoo rau kev txhim kho cov khoom sib tw thiab ua tiav kev tsim khoom lag luam. Nws pab cov neeg siv khoom zoo txo cov nqi tsev, txo qis kev xa mus, thiab teb sai sai rau kev lag luam xav tau rau high-end micro-flat xov hlau los ntawm kev muab cov khoom ruaj khov, zoo tshaj plaws, tsis tshua muaj ntau lawm txuas ntxiv, thiab cov txheej txheem hloov tau yooj yim.

GRM Rolling Mill tuaj yeem muab cov kev daws teeb meem thiab kev txhawb nqa dav dav raws li koj cov ntaub ntawv tshwj xeeb, cov hom phiaj tshwj xeeb, thiab cov peev txheej yuav tsum tau ua. Tiv tauj peb tam sim no!
