Hnub ci PV Ribbon Tshuab

Hnub ci PV Ribbon & MBB Hlau Manufacturing Solutions

GRM muab cov kev daws teeb meem ua tiav rauPV interconnect ribbon, PV busbar ribbon thiab MBB round hlau ntau lawm. Peb cov khoom siv portfolio npog precision dov, annealing, tinning, kho deg thiab tsis siv neeg spooling tshuab, txhawb kev tsim cov khoom siv hluav taws xob zoo rau niaj hnub photovoltaic modules.

Tsim kom muaj kev ruaj ntseg zoo, kev tswj xyuas meej meej thiab txhim khu kev lag luam mus sij hawm ntev, GRM cov kev daws teeb meem pab cov tuam txhab ua kom tau raws li qhov xav tau loj hlob rau kev ua haujlwm siab hnub ci cell interconnection technologies.

Ua kom tiav cov cuab yeej daws teeb meem rau Solar Conductors

1

PV Interconnect Ribbon

2

PV Busbar

3

MBB Round Hlau

Interconnect ribbonhloov tam sim no ntawm lub hnub ci hlwb,busbar ribbonsau thiab xa tam sim no mus rau lub thawv sib txuas, thaumMBB round hlauenables dua module efficiency los ntawm kev txo shading losses.

Cov conductors no ua lub luag haujlwm tseem ceeb hauv cov khoom siv hluav taws xob, kev ntseeg siab thiab kev ua haujlwm ntev ntev.

Yuav ua li cas Solar Conductors raug tsim

GRM muab cov kev daws teeb meem tiav rau kev tsim hluav taws xob hnub ci. Cov khoom siv GRM npog tag nrho cov kev tsim khoom ua haujlwm los ntawm kev ua kom tiav dov thiab annealing rau tinning thiab spooling tooj liab cov ntaub ntawv npaj kom tiav PV ribbon thiab MBB hlau cov khoom.

Cov txheej txheem ntau lawm ua kom muaj qhov tseeb qhov tseeb, ruaj khov txheej zoo thiab kev ua haujlwm siab.

1

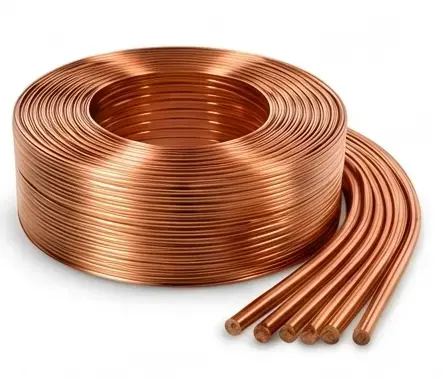

Raw Copper Khoom

High-purity tooj liab pas nrig ua raw khoom

Tooj Liab

Tooj Hlau

→

2

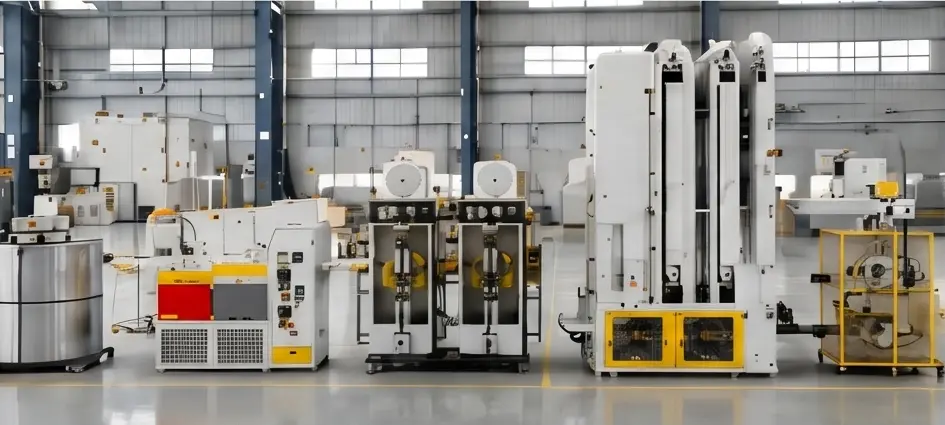

GRM Manufacturing Khoom

Ua tiav cov kab ntau lawm rau precision sib sau, annealing thiab spooling

Rolling
Mill

Annealing
Rauv

Nto
Kev kho mob

Spooling
Qhov system

Hluav taws xob
Tswj

→

3

Solar Conductors

High-precision PV ribbon thiab MBB round hlau

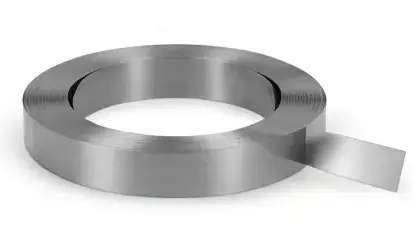

PV Ribbon

(Interconnect Ribbon / Busbar Ribbon)

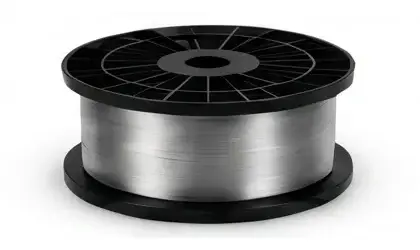

MBB Round Hlau

(φ0.20-0.25 hli)

→

4

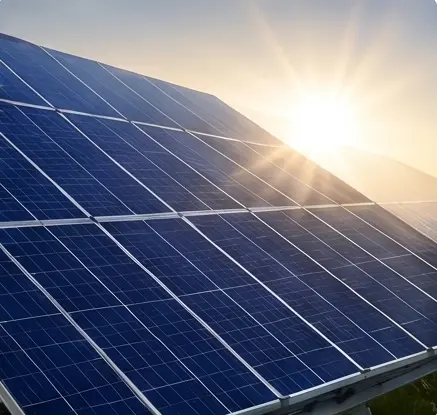

Hnub ci Module

Siv nyob rau hauv high-efficiency solar modules

TOPCon
Cov qauv

HJT
Cov qauv

Cov khoom sib piv.

01

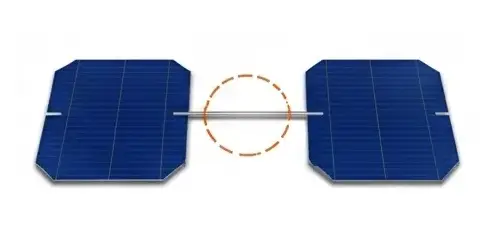

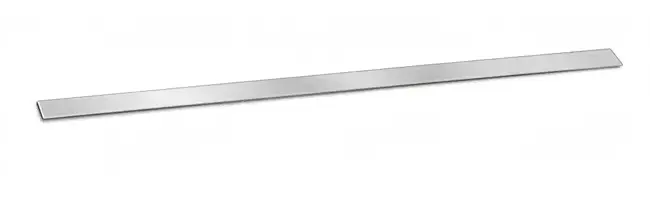

PV Interconnect Ribbon

(Tab sis Ribbon)

Muaj nuj nqi

Kev sib txuas ntawm tes

Dav

0.3-1.6 hli

Thickness

0.10-0.25 hli

Daim ntawv thov

Cell Xov

+

Txuas cov cell uas nyob ib sab hla cov hlua module.

Qhov tseem ceeb Advantage

Txhim khu kev sib txuas ntawm tes-rau-cell nrog siab solderability thiab zoo heev conductivity.

02

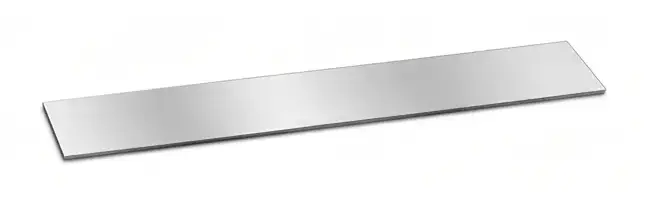

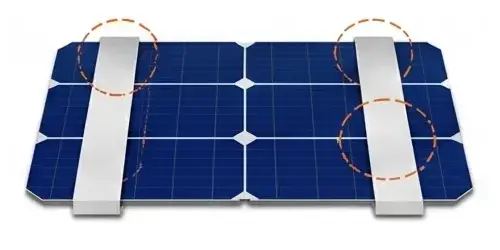

PV Busbar Ribbon

(Bus Wire)

Muaj nuj nqi

Tam sim no Sau

Dav

3.0-8.0 hli

Thickness

0.20-0.50 hli

Daim ntawv thov

Module tso zis

+

Sau tam sim no los ntawm interconnected cell thiab hloov mus rau junction box.

Qhov tseem ceeb Advantage

Tsawg tsis kam thiab siab tam sim no nqa peev xwm rau siab tshaj plaws lub zog tso zis.

03

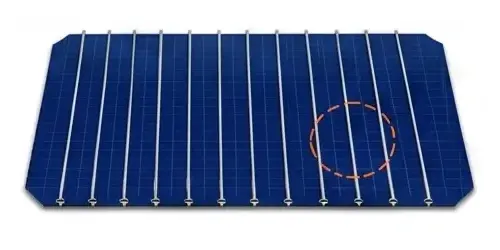

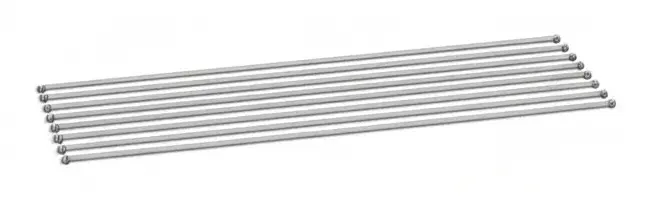

PV MBB Round Wire

Muaj nuj nqi

Multi-Busbar kev twb kev txuas

Txoj kab uas hla

φ0.20 - 0.26 hli

Thickness

–

Daim ntawv thov

High-Efficiency Modules

+

Soldered ntawm lub xov tooj ntawm tes kom txo cov shading thiab txhim kho efficiency.

Qhov tseem ceeb Advantage

Txo shading poob thiab siv lub teeb zoo dua rau kev ua haujlwm zoo dua module.

PV ribbon thiab MBB round hlau yog dav siv nyob rau hauv zus tau tej cov high-efficiency photovoltaic modules. Nrog rau kev txais yuav sai sai ntawm TOPCon, HJT thiab BC cell technologies, manufacturers xav tau cov neeg xyuas pib nrog ntau dua precision, zoo dua solderability thiab txhim kho hluav taws xob kev ua tau zoo.

GRM cov cuab yeej txhawb nqa kev tsim cov hnub ci hluav taws xob siv hauv:

Kev ntseeg siab los ntawm Cov Thawj Coj Kev Lag Luam

GRM cov cuab yeej tau muab rau ua PV ribbon thiab hnub ci conductor manufacturers hauv Suav teb thiab txawv teb chaws. Los ntawm ntau xyoo ntawm kev koom tes nrog cov neeg koom tes hauv kev lag luam, GRM tau sau ntau yam kev paub hauv cov neeg xyuas pib dov, annealing, tinning thiab cov txheej txheem optimization.

Peb lub hnub ci PV ribbon tshuab kev daws teeb meem txhawb cov tuam txhab tsim cov khoom siv hluav taws xob rau cov hnub ci ua haujlwm siab thiab pab cov neeg siv khoom txhim kho cov khoom lag luam, cov khoom sib xws thiab kev ntseeg siab rau kev ua haujlwm ntev.

Pib Koj Lub Hnub Ci PV Production Project

Txawm hais tias koj tab tom nkag mus rau PV neeg xyuas pib kev lag luam lossis nthuav koj lub peev xwm ntau lawm, GRM muab cov cuab yeej ua tiav, cov txheej txheem kev txawj ntse thiab kev txhawb nqa mus ntev.

Hu rau GRM rauib tug customizedPV ribbon los yog MBB hlau manufacturing tov.

20+

Xyoo

Precision Rolling Kev Paub

Muaj kev txawj ntse nyob rau hauv precision dov, txheej thiab conductor manufacturing khoom.

10+

Patents

Patented Technology

Ntau patented technologies rau precision dov, nro tswj thiab kev kho deg txheej txheem.

100+

Nruab kab

Kev lag luam siv

Trusted los ntawm cov thawj coj PV ribbon thiab hnub ci conductor manufacturers thoob ntiaj teb.

24/7

Kev pab txhawb nqa

Kev Pabcuam Lifecycle

Kev txhawb nqa los ntawm kev teeb tsa thiab kev xa mus rau kev hloov kho thiab kev ua kom zoo.

Cov lus nug nquag

1. PV ribbon yog dab tsi?

PV ribbon yog ib lub tiaj tooj liab tus neeg xyuas pib coated nrog solder thiab siv los txuas hnub ci hlwb hauv photovoltaic modules.

2. Dab tsi yog qhov txawv ntawm kev sib txuas ribbon thiab busbar ribbon?

Interconnect ribbon txuas hnub ci hlwb, thaum busbar ribbon sau thiab hloov hluav taws xob tam sim no mus rau lub thawv sib txuas.

3.Dab tsi yog MBB round hlau?

MBB round hlau yog siv nyob rau hauv multi-busbar hnub ci modules los txo shading losses thiab txhim kho module efficiency.

4.Dab tsi yog cov cuab yeej siv los tsim PV ribbon?

Ua tiav PV ribbon ntau lawm kab feem ntau suav nrog dov, annealing, tinning, nruj tswj thiab spooling tshuab.

5.Can ib kab ntau lawm tsim cov ribbon sib txawv?

Yog lawm. GRM systems tuaj yeem teeb tsa rau kev tsim khoom yooj yim thiab hloov khoom sai.
