Tshiab Hnub Ci PV Round Hlau Tshuab

GRM tshwj xeeb hauv R & D thiab tsim cov kab ntau lawm rau kev ua haujlwm siab photovoltaic ribbons, tshwj xeeb tshaj yog MBB (Multi-Busbar) ribbons. Lub Hnub Ci PV Round Wire Tshuab yog tsim los ua kom tau raws li PV kev lag luam cov kev xav tau ntau ntxiv rau kev ua tau zoo, kev ua tau zoo, thiab kev ruaj khov.

Los ntawm kev npaj tooj liab mus rau txheej thiab cov khoom tiav winding, cov cuab yeej txhawb nqa tag nrho cov txheej txheem tswj los pab cov neeg siv khoom tsim cov khoom siv hluav taws xob zoo photovoltaic ribbons nrog zoo conductivity, soldering kev ntseeg tau, txheej sib xws, thiab cov huab cua mus ntev.

Yam khoom	Specification
Tshuab qauv	GRM-RWRM-ATD
Inlet loj	Φ0.8mm-Φ1.2 hli
Ceev	Max. 400m / min
Tin thickness	0.01-0.02mm / sab khiav loj
Ua siab ntev	Tooj liab: ± 0.003mm Thickness: ± 0.005 hli
Cov khoom tiav yield zog	≤ 65 MPa
Tensile zog	≤ 240 MPa

Hloov tshiab tseem ceeb

Piv nrog GRM tus qauv yav dhau los round hlau tshuab qauv, GRM-RWRM-AT, lub hnub ci tshiab PV Round Wire Tshuab suav nrog cov kev hloov kho hauv qab no:

1. Txhim kho tinning txias tsim

   Txhim kho cov qauv ua kom txias rau qhov kub thiab txias. Chiller muaj raws li kev xaiv rau qhov chaw huab cua.

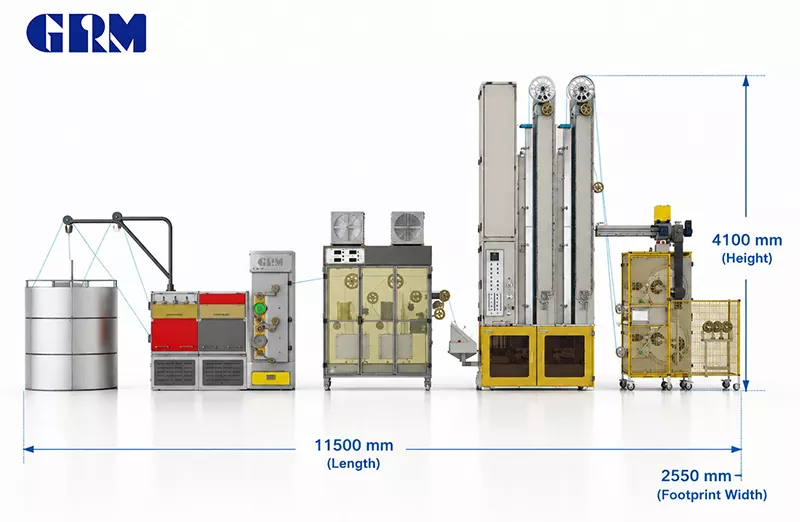

2. Ntau compact tshuab layout

   Optimized hneev taw rau high-volume ntau lawm. Txhawb nqa rov qab-rau-rov qab kev npaj raws li cov nroj tsuag xav tau.

3. Txhim khu kev ruaj ntseg

   Ntxiv cov kev tiv thaiv npog ntawm cov nyiaj them poob haujlwm thiab kev nqa mus rau kev txhim kho tus neeg ua haujlwm kev nyab xeeb.

GRM muab ob qho tib sitag nrho tsis siv neegthiabsemi-automatic qauvkom phim cov peev nyiaj sib txawv, kev tsim khoom muaj peev xwm, thiab cov kev xav tau automation.

Yam qauv

Kev Paub Txog Kev Ua Lag Luam

GRM photovoltaic ribbon cov cuab yeej tau txais los ntawm cov tuam txhab ua lag luam PV thiab cov neeg siv khoom lag luam, suav nrog JA Hnub Ci, Telison, Aditya Birla Group, thiab lwm cov neeg siv khoom thoob ntiaj teb. Cov cuab yeej txhawb nqa loj-loj ntau lawm ntawm high-efficiency PV modules los ntawm kev pab cov neeg muas zaub txhim kho ribbon zoo, ntau lawm stability, thiab cov txheej txheem sib xws.

GRM tau cog lus los txhawb PV cov tuam txhab nrog cov cuab yeej siv thev naus laus zis thiab kev nkag siab txog cov txheej txheem. Nrog txhim khu kev qha cov kab ntau lawm thiab cov khoom siv hloov tau yooj yim, GRM pab cov neeg siv khoom txhim kho ribbon zoo, txo tag nrho cov nqi tsim khoom, thiab ntxiv dag zog rau lawv cov kev sib tw hauv kev lag luam hnub ci PV.
