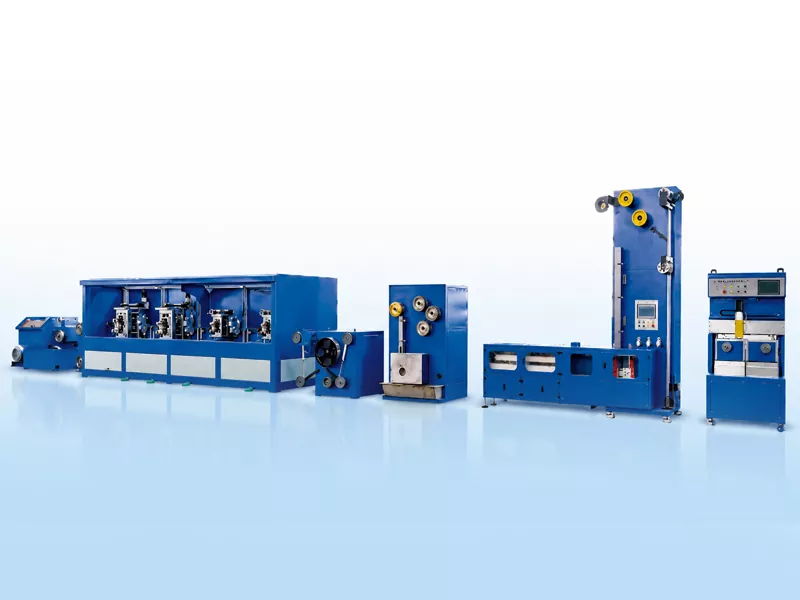

PV Busbar Ribbon Ntau Lawm Kab

GRM PV Busbar Ribbon Ntau Lawm Kab yog tsim los ua cov txheej txheem TU1 tsis muaj oxygen tsis muaj tooj liab nyob rau hauv high-precision tin-coated ca conductive ribbon. Cov kab yog tsim rau PV interconnection ribbon, busbar ribbon, thiab reflective busbar ribbon ntau lawm.
Cov kab tiav integrates hlau kos duab, precision dov, nruam annealing, flux kho, kub-dip tin txheej, thiab tsis siv neeg nqa. Nws pab PV ribbon manufacturers tswj qhov dav thiab tuab qhov tseeb, tin txheej zoo, sawb ncaj, thiab winding sib xws.
GRM busbar ribbon ntau lawm kab yog kwv yees li 26 m ntev thiab 3 m dav, nrog rau tag nrho cov kab hnyav li ntawm 14 tons. Tus qauv tsim ceev tuaj yeem ncav cuag li 150 m / min, nyob ntawm qhov loj ntawm tooj liab, qhov ntev ribbon tiav, tinning ceev, thiab nqa txoj kev. Raws li cov xwm txheej ntau lawm, cov zis txhua hli tuaj yeem ncav cuag li 60-80 tons.

Xa lus nug

Product Description

Los ntawm tooj liab mus rau tiav Busbar Ribbon

PV Busbar Ribbon Ntau Lawm Kab feem ntau siv tooj liab hlau ua cov khoom siv raw. Cov hlau yog thawj zaug kos mus rau qhov yuav tsum tau txoj kab uas hla rau dov, thiab tom qab ntawd tsim rau hauv tiaj tus ribbon los ntawm multi-stand precision dov. Tom qab dov, tooj liab strips dhau los ntawm kev nruam annealing los kho nws cov khoom siv kho tshuab, ua raws li kev kho mob flux thiab kub-dip tin txheej. Thaum kawg, cov ribbon tiav lawm yog qhov txhab los ntawm kev siv lub tshuab tsis siv neeg mus rau hauv cov spools lossis pancake coils.

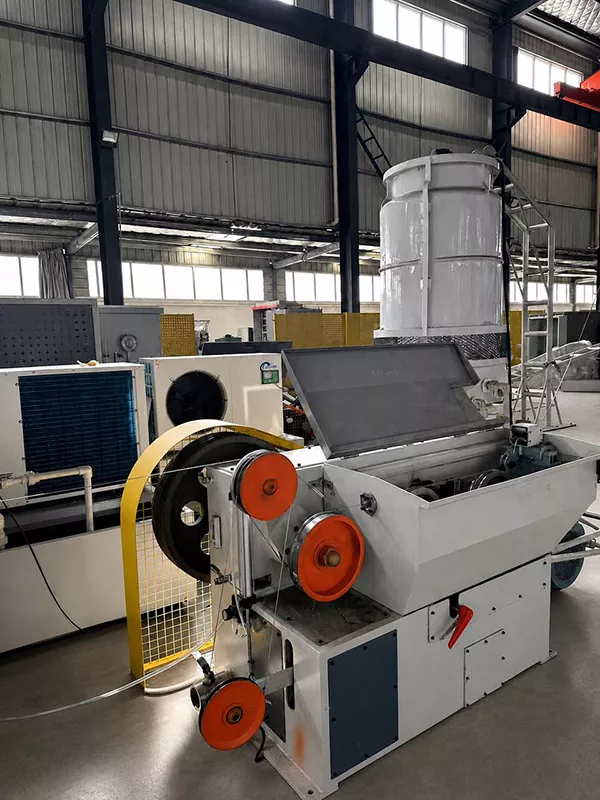

Tshuab kos duab

Cov hlau tooj liab yog kos los ntawm kev tuag mus rau ib txoj kab uas hla ntawm 2.6-3.0 hli, npaj rau dov.

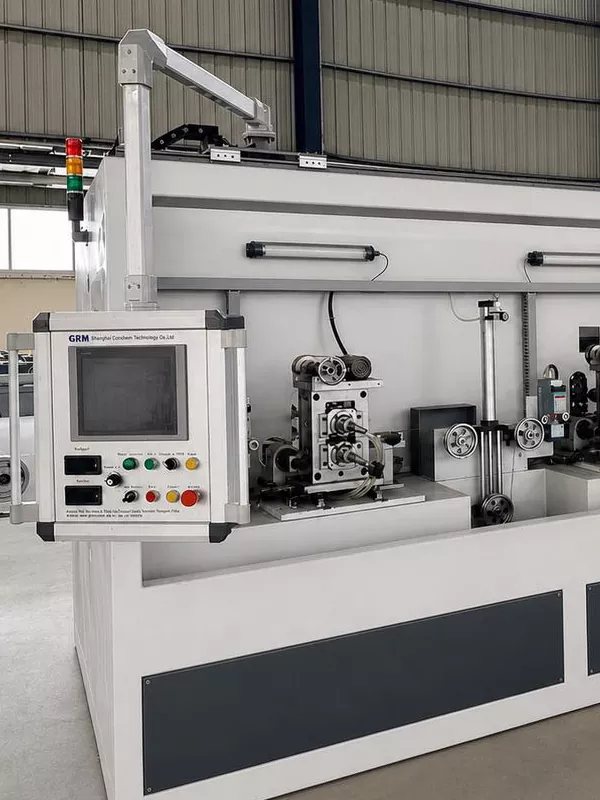

4 Roll Stand

Round tooj liab hlau yog dov mus rau hauv lub tiaj tus ribbon, nrog tswj dav thiab thickness raug.

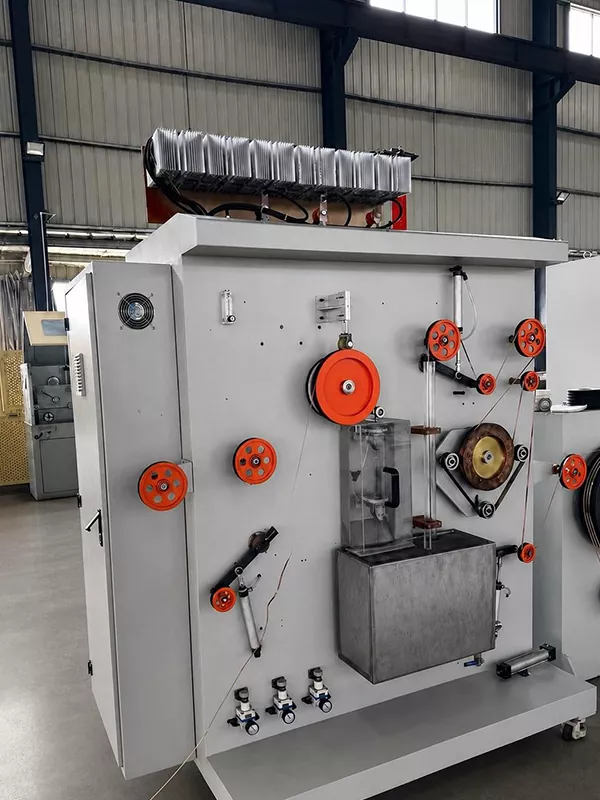

Annealing

Short-circuit annealing yog siv nrog inert gas tiv thaiv thiab circulating dej txias los txhim kho cov tooj liab ribbon cov neeg kho tshuab zog.

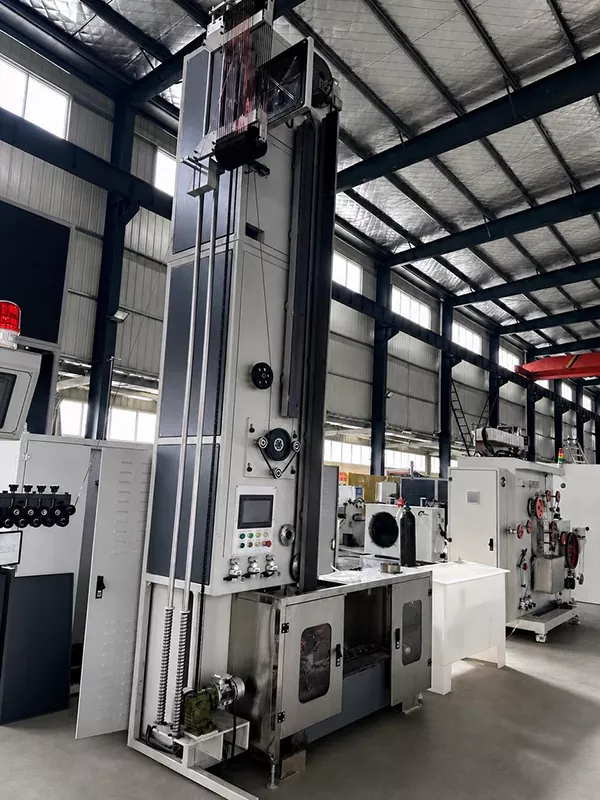

Tin Txheej

Kub-dip tin txheej yog siv. Cua riam tswj lub tin txheej thickness, thiab cua txias kiv cua pab stabilize lub nto zoo. Ib sab tin txheej thickness: 0.01-0.025 hli.

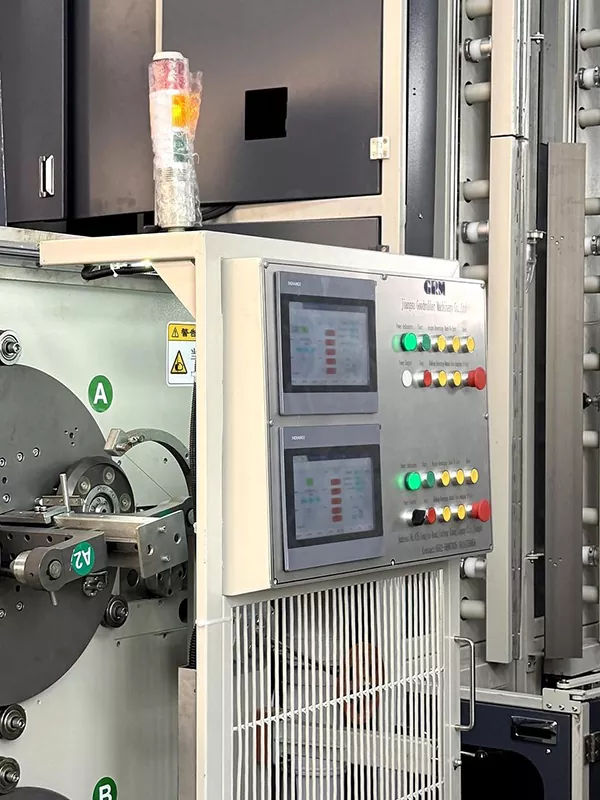

Tsis Siv Neeg Coil Chang

Kev xaiv muaj xws li servo traversing, tsis siv neeg spool hloov, tsis siv neeg txiav, thiab tsis siv neeg taping.

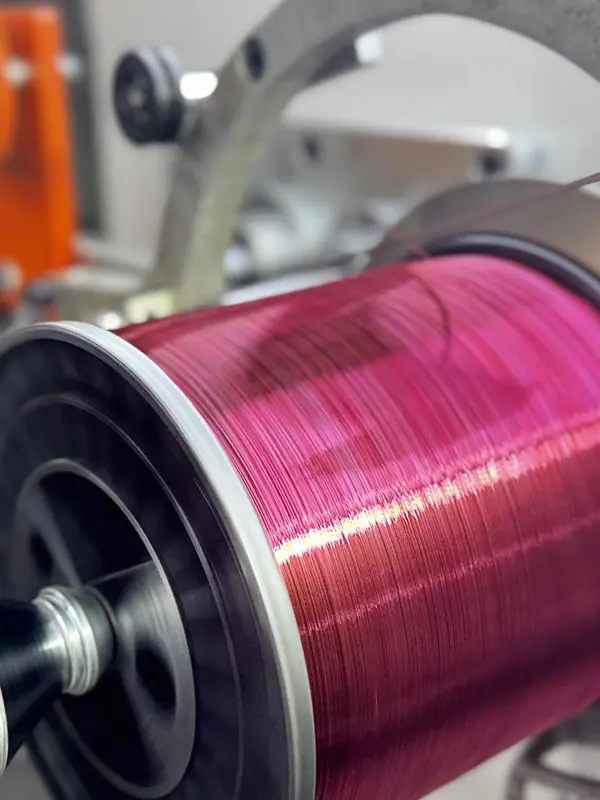

Precision khoom

Spool winding: mus txog 30 kg.

Pancake coil winding: yeem 1-2 kg.

R & D thiab Patents

Txij li xyoo 2015, GRM tau txuas ntxiv tsim cov cuab yeej tsim khoom rau PV interconnection ribbon thiab busbar ribbon. Lub tuam txhab tau txais ntau yam txuj ci patents ntsig txog precision dov, ntau lawm kab kev koom ua ke, thiab PV ribbon manufacturing txheej txheem.

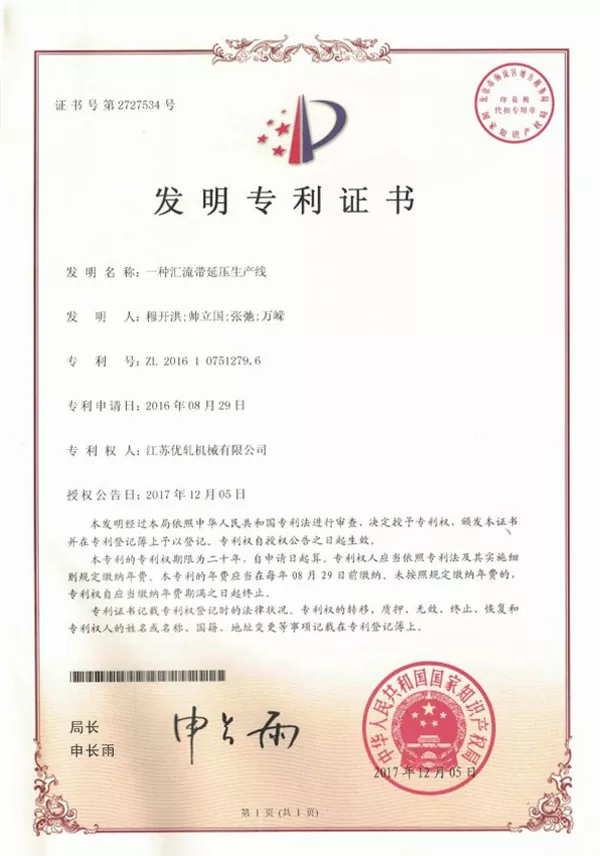

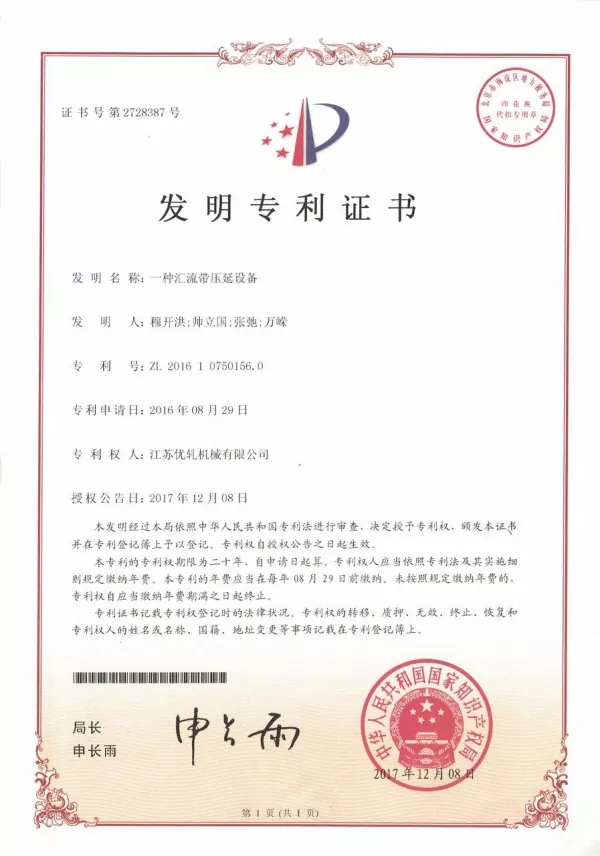

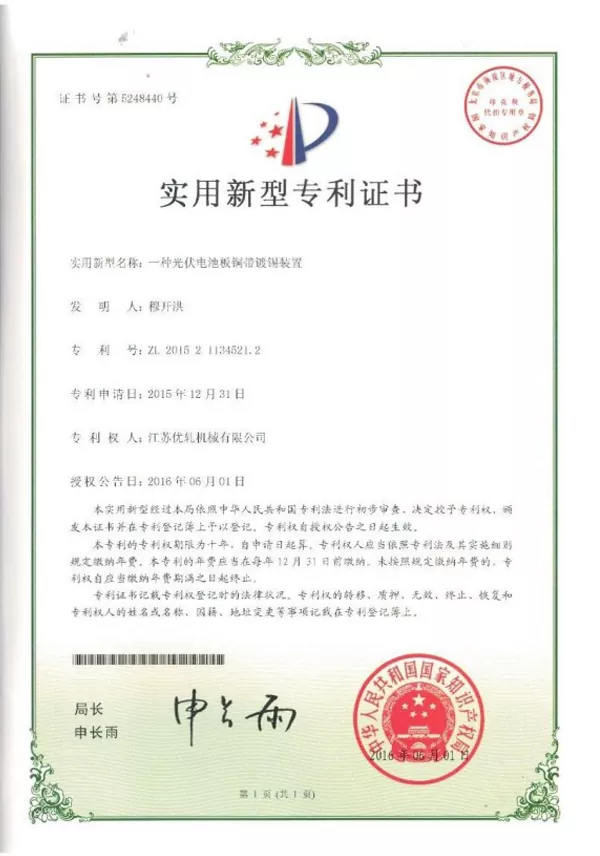

GRM Patented Technologies rau PV Ribbon Manufacturing Equipment

Cov yam ntxwv tseem ceeb

Nruam ntau lawm los ntawm tooj liab hlau input kom tiav tin-coated busbar ribbon tso zis.
Txhim kho qhov zoo sib xws, txheej txheej uniformity, thiab winding zoo.
Kev sib koom tes nruj thiab tsis siv neeg nqa tuaj yeem pab txo qis kev cuam tshuam ntau lawm thiab kev cuam tshuam ntawm phau ntawv.
Txhawb nqa ob tus qauv busbar ribbon thiab reflective busbar ribbon ntau lawm rau txawv PV module khoom yuav tsum tau.
Muab PV ribbon manufacturers nrog kev sib xyaw ua ke kev daws teeb meem tsom rau kev tswj cov txheej txheem, cov khoom sib xws, thiab kev ua haujlwm ntau lawm.

Cov lus nug nquag

1.Dab tsi yog qhov khoom tiav loj npaum li cas?

Ua tiav dav: 3-8 mm.

Thickness: 0.2-0.4 hli

2.Dab tsi yog qhov kam rau ua thiab cov cuab yeej cuab tam li cas?

Dav kam rau ua: ± 0.085mm

Thickness kam rau ua: ± 0.01mm

Tensile zog: ≥260 MPa.

Tawm lub zog: 90-130 MPa.

3.Cov txheej txheem tin txheej twg yog siv?

Cov kab siv kub-dip tin txheej, nrog tag nrho cov kev pab cuam nyob ib ncig ntawm lub ribbon, nrog rau ob sab ntug.

4.Cov khoom dav thiab thickness ntsuas li cas?

Qhov thib plaub sawv ntsug ntawm plaub-sawv dov zeb yog nruab nrog ob lub laser ntsuas tshuab, ib qho rau kev ntsuas dav thiab ib qho rau kev ntsuas thickness. Cov ntaub ntawv ntsuas tuaj yeem tso tawm ntawm HMI.

5.Cov ntaub ntawv dab tsi tuaj yeem ua tiav?

PV Busbar Ribbon Ntau Lawm Kab yog tsim los rau TU1 oxygen-dawb tooj liab hlau. Customized configurations muaj peev xwm muab tau raws li qhov sib txawv tooj liab alloys, khoom qhov ntev, thiab tshwj xeeb ribbon yuav tsum tau.
