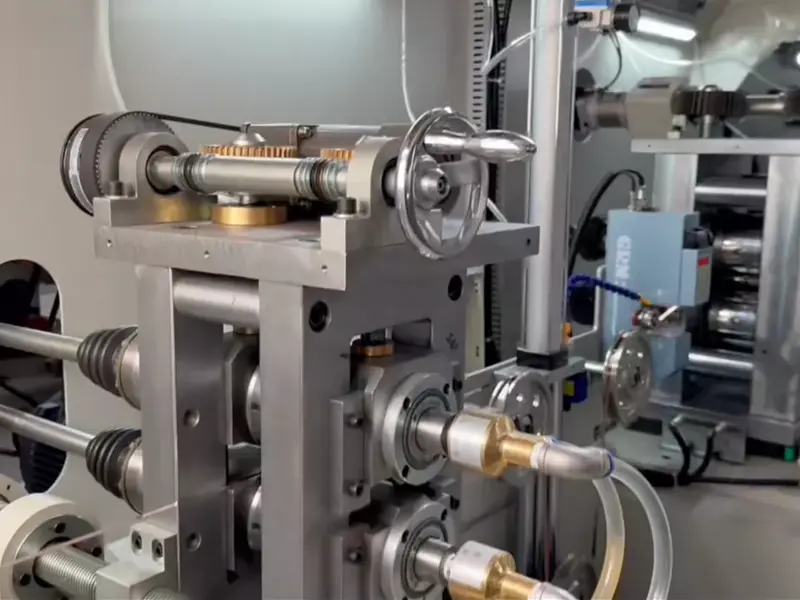

PV Ribbon Rolling Mills

High-quality PV Ribbon Rolling Mills los ntawm GRM Rolling Mills chaw tsim tshuaj paus yog cov tub ntxhais dov cov cuab yeej tshwj xeeb tsim los rau photovoltaic (PV) busbars, tsim rau tsim PV interconnects, busbars, thiab ultra-thin tooj liab strips rau cov hlwb ua tau zoo.
1. High precision
2. Kev ruaj ntseg siab
3. Cov kab siab tshaj plaws: 120m / min
4. Thickness kam rau ua: ± 0.004mm

Xa lus nug

Product Description

Tuam Tshoj PV Ribbon Rolling Mills los ntawm GRM Rolling Mill Hoobkas yog cov khoom siv tseem ceeb tsim los rau kev tsim cov khoom siv hluav taws xob zoo, zoo tshaj plaws photovoltaic ribbons. Lawv precision-yob tsis muaj oxygen-dawb tooj liab hlau rau hauv ultra-thin ca ribbon rau lub hnub ci cell interconnection, kom ntseeg tau zoo heev thickness sib xws, du npoo, thiab txhim khu kev qha mechanical kev ua tau zoo. Cov cuab yeej no yog qhov tseem ceeb rau kev txhim kho kev ua tau zoo thiab kev ntseeg siab ntawm PV modules.

Daim ntawv thov

Daim ntawv thov	Kev piav qhia

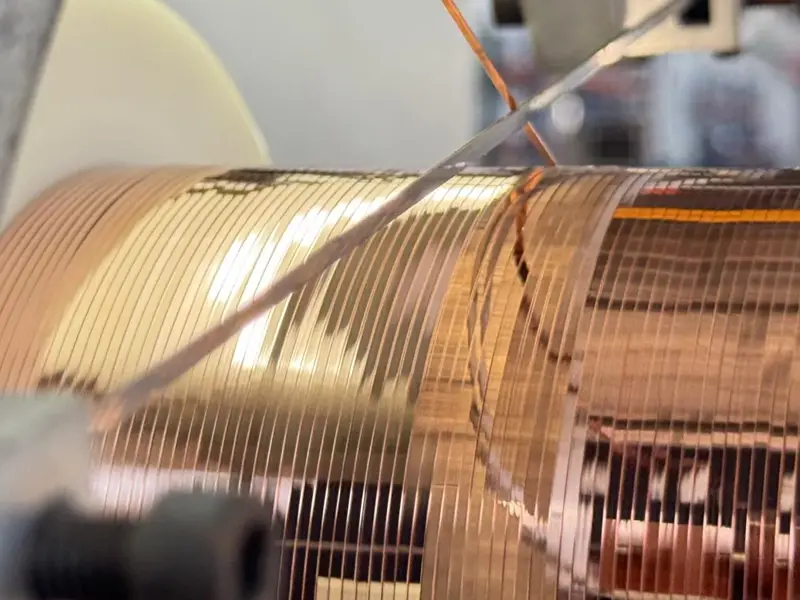

PV Interconnection Ribbon	Solar cell interconnection
Bus Ribbon	Tam sim no collection conductor
Ultra-Thin Copper Ribbon	High-efficiency PV modules

Specification

Yam khoom	Specification
Khoom siv	Oxygen-Free Copper Wire
Input Diameter	φ2.6-φ3.5 hli
Ribbon dav	3-8 hli
Thickness Ntau	0.05-0.45 hli
Thickness kam rau ua	± 0.004 hli
Dav Tolerance	± 0.03 hli
Qhov dav / Thickness ratio	≤160
Kab Ceev	120m / min

Cov yam ntxwv tseem ceeb

1. Ultra-siab precision dov: xyuas kom tuab thiab dav tolerances mus txog qib micron, ua tau raws li cov kev cai nruj ntawm ultra-thin busbars.

2. Superior stability: Guarantees uniform thiab zoo ib yam strip deg zoo nrog burr-dawb npoo, txo cov tom ntej ua tsis xws luag.

3. Cov txheej txheem yooj yim ntawm lub qhov rais: Ntau qhov tuab thiab dav hloov kho tso cai rau kev hloov pauv sai ntawm ntau yam khoom tshwj xeeb.

4. High-efficiency ntau lawm muaj peev xwm: High-line ceev tsim tsub kom ib leeg-tshuab tso zis ntau lawm thiab txo nqi tsev ntau lawm.

5. Intelligent interfaces: Reserved interfaces rau ntau yam sensors thiab tswj systems, nteg lub hauv paus rau kev hloov kho digital.

Yeem Configurations

Txhawm rau ua kom tau raws li cov kev xav tau tshwj xeeb, cov cuab yeej muaj cov txheej txheem kev xaiv hauv qab no:

Tsis siv neeg thickness ntsuas qhov system

Servo tsis siv neeg hloov qhov system

Kev tshuaj xyuas saum npoo online

Customized yob pass tsim

Tin-coating txheej txheem kev koom ua ke

Kev Lag Luam Kev Lag Luam: Ultra-Thin PV Ribbon Ntau Lawm

Raws li photovoltaic modules txuas ntxiv txhim kho kev ua haujlwm thiab txo cov khoom siv, thinner PV ribbon ntau lawm tau dhau los ua kev lag luam loj. Kev thov ntau dua rau cov hlua tooj liab ultra-nyias yog tsav cov kev xav tau ntau dua rau kev dov precision, dov kev hloov kho, thiab qhov ruaj khov nyob rau hauv photovoltaic ribbon manufacturing.

FAQ

1. Cov ntaub ntawv dab tsi tuaj yeem ua tiav los ntawm PV ribbon dov zeb?

Lub kaw lus yog tsim los rau oxygen-dawb tooj liab hlau thiab precision conductive tooj liab cov ntaub ntawv siv nyob rau hauv photovoltaic ribbon ntau lawm.

2. Dab tsi thickness ntau lub tshuab ua tiav?

Rolling zeb txhawb tiav ribbon thickness ntawm 0.05 hli mus rau 0.45 hli nyob ntawm seb yuav tsum tau ntau lawm.

3. Cov khoom puas tuaj yeem txhawb nqa ultra-thin PV ribbon ntau lawm?

Yog lawm. Lub kaw lus yog tsim los rau high-precision nyias ribbon dov thiab txhawb kev txhim kho yav tom ntej rau cov ntawv thov photovoltaic ribbon thinner.
