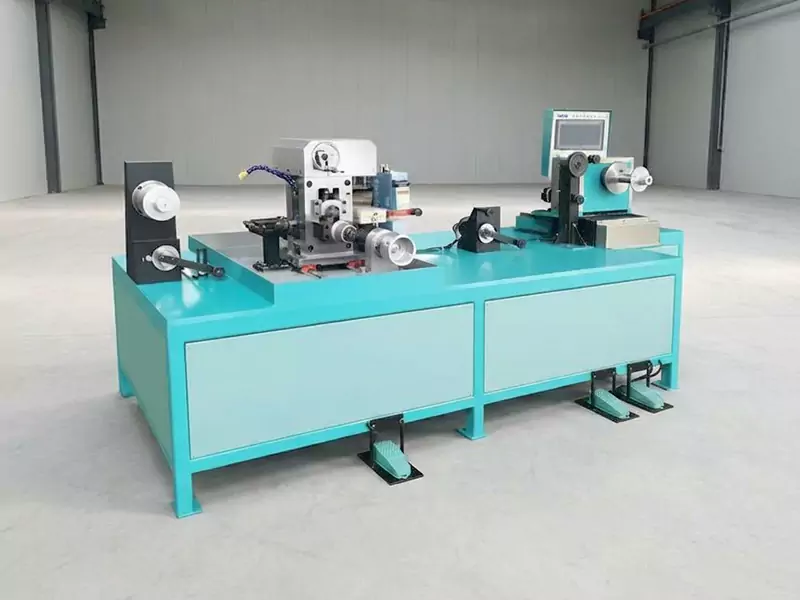

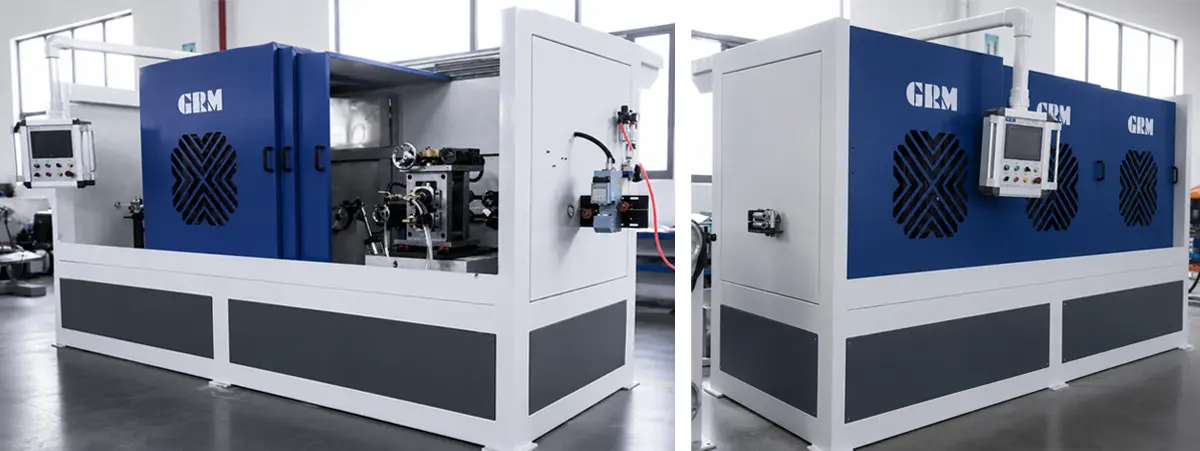

Rectangular Hlau Micro Rolling Unit
GRM Rectangular Wire Micro Rolling Unit yog tsim los rau precision dov ntawm zoo puag ncig hlau hlau rau hauv high-precision rectangular hlau los ntawm kev nruam ntau dhau txias dov txheej txheem.Lub kaw lus yog tsim los tsim cov hlau zoo rau cov me me coils, precision winding conductors, kho mob guidewire ca hlau Cheebtsam, sensor conductive ntsiab thiab lwm yam micro profiled metallic qhov chaw uas yuav tsum tau ruaj khov qhov ntev thiab huv si saum npoo.Raws li cov chaw tsim khoom tshwj xeeb ntawm cov khoom siv dov precision, GRM muab cov kev daws teeb meem me me rau cov tooj liab hlau, hlau hlau thiab lwm yam khoom siv hlau zoo raws li kev tsim khoom sib txawv.
Xa lus nug
Product Description
GRM Micro Rolling Unit yog tsim los rau kev hloov pauv txuas ntxiv ntawm cov xaim zoo rau hauvprecision rectangular hlaunrog nqaim thickness ntau thiab siab dav-rau-thickness ratio.

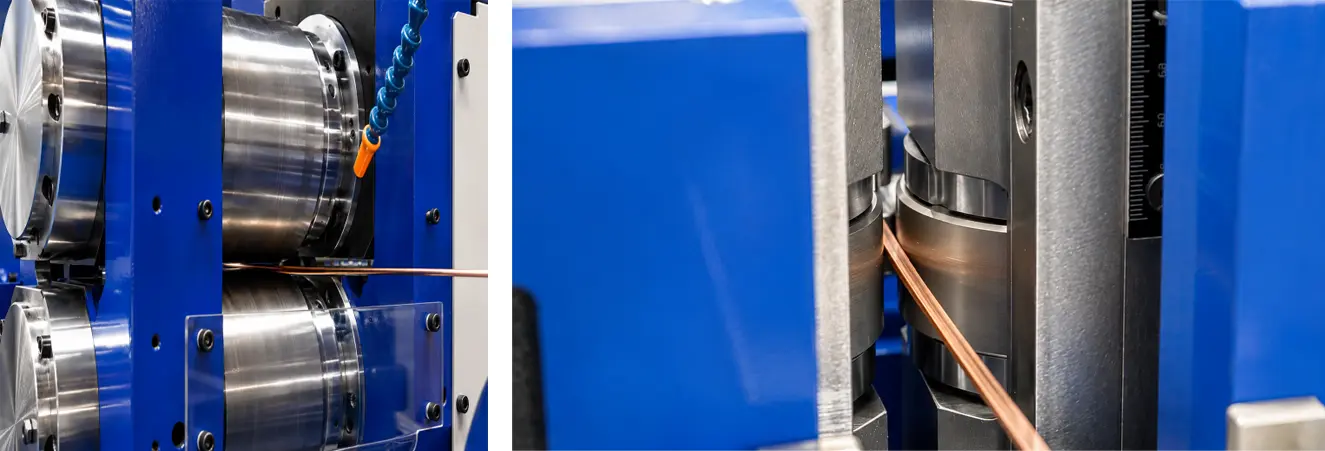

Cov txheej txheem ntau lawm ua ke nrog kev them nyiaj ntau dhau, ntau dhau dov deformation, nro synchronization, inline dimensional soj ntsuam, xaiv kev tu qhov system thiab precision spool winding rau hauv ib qho kev ua ntu zus.
Piv nrog rau cov khoom siv loj loj dov, lub micro dov system yog tsim tshwj xeeb rau cov neeg ua haujlwm me me uas qhov kev rov ua tau zoo dua qub, txo qhov ruaj khov thiab qhov zoo ntawm qhov chaw ncaj qha cuam tshuam rau hauv qab sib sau, winding thiab sib dhos txheej txheem.
Muaj peev xwm tsim tau
Cov cuab yeej tsim nyog rau kev tsim cov khoom siv hluav taws xob zoo nkauj zoo nkauj thiab micro tiaj tus neeg xyuas pib nrog kev tswj hwm nruj rau kev siv cov nqi siab.

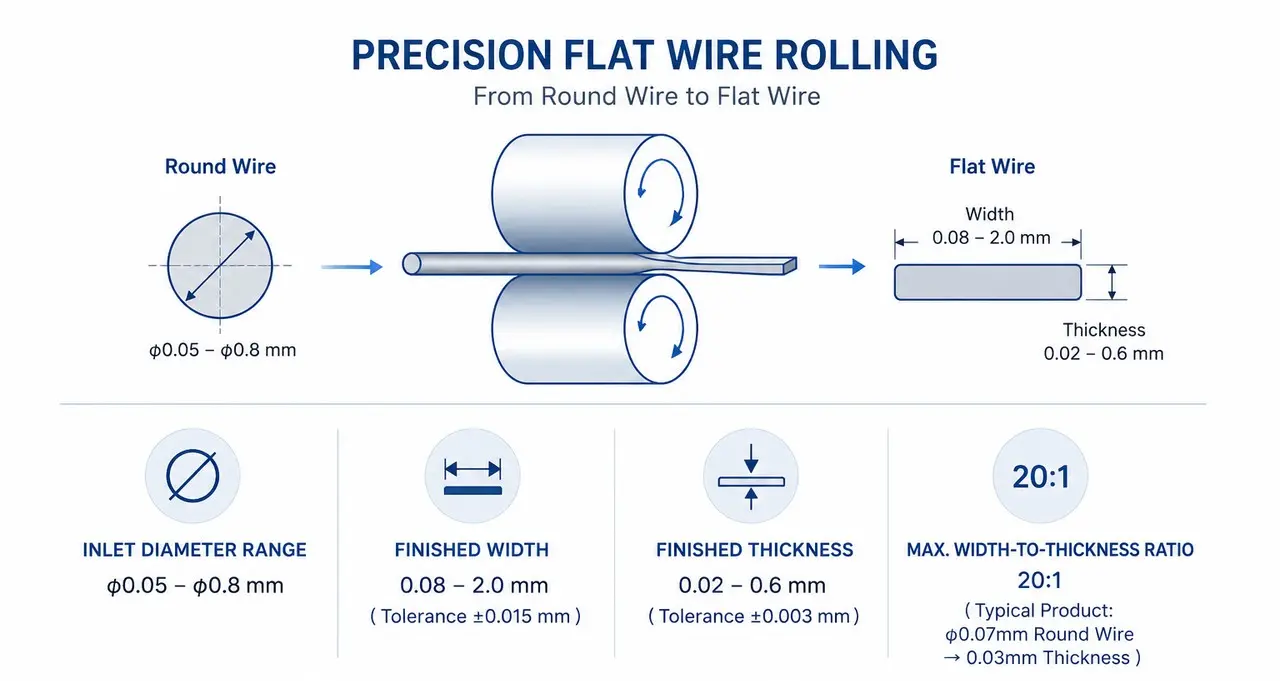

Technical Parameters
|
Yam khoom
|
Specification / Muaj Cov Ntaub Ntawv
|
|
Input hlau txoj kab uas hla
|
0.05-0.8 hli
|
|
Ua tiav dav
|
0.08-2.0 hli
|
|
Ua tiav thickness
|
0.02-0.6 hli
|
|
Qhov siab tshaj plaws / thickness piv
|
20: 1.
|
|
Mechanical tsim siab tshaj plaws ceev
|
200m / min.
|
|
Txias & lubrication
|
Txau txias nrog pom kev ncig system
|
|
Tswj qhov system
|
HMI ua haujlwm interface nrog kev soj ntsuam ntau lawm lub sijhawm
|
|
Tshuab Configuration
|
Customized raws li qhov project xav tau
|

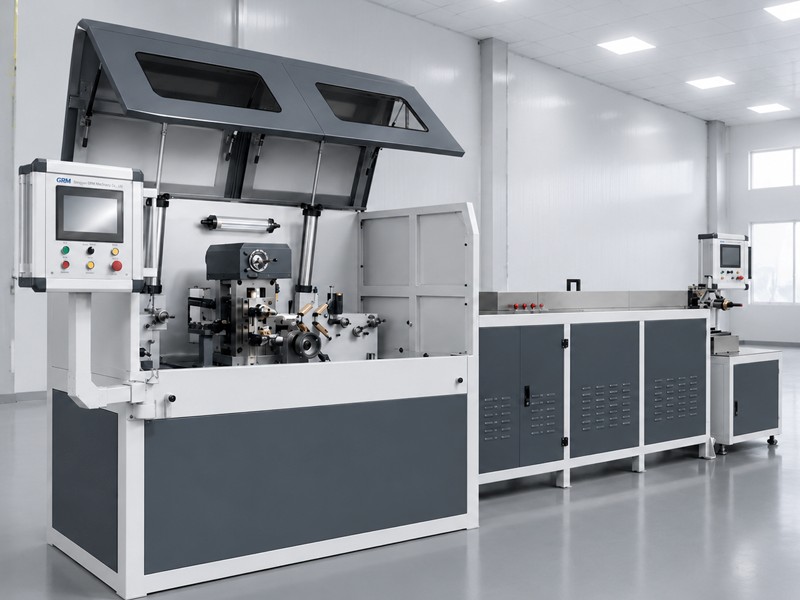

Standard Production Flow
- Active them nyiaj
- GRM160 dov zeb
- Dancer tom qab dov zeb
- Inline tshuaj xyuas
- GRM90 dov zeb
- Inline ntxuav + ziab (yeem)
- Spooler
Intelligent Control System
- Centralized HMI ua haujlwm system rau kev tswj kab tiav
- Real-time saib xyuas ntawm dov ceev, nro thiab ntau lawm raws li txoj cai
- Kev hloov ceev ceev rau dov parameter kho
- Visual zaub ntawm tiav cov txheej txheem ntau lawm ib ntus
Daim ntawv thov
Rectangular Wire Micro Rolling Unit yog dav siv nyob rau hauv kev lag luam uas yuav tsum tau high-precision zoo rectangular conductors.

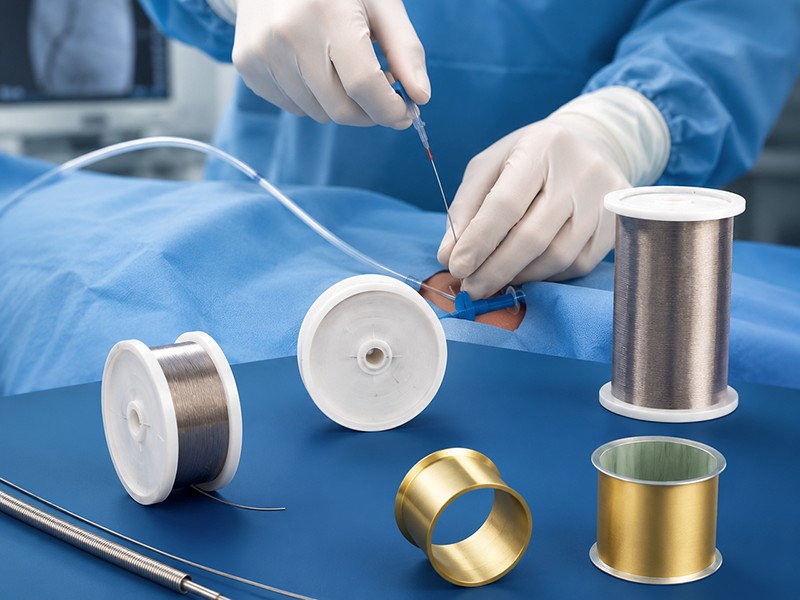

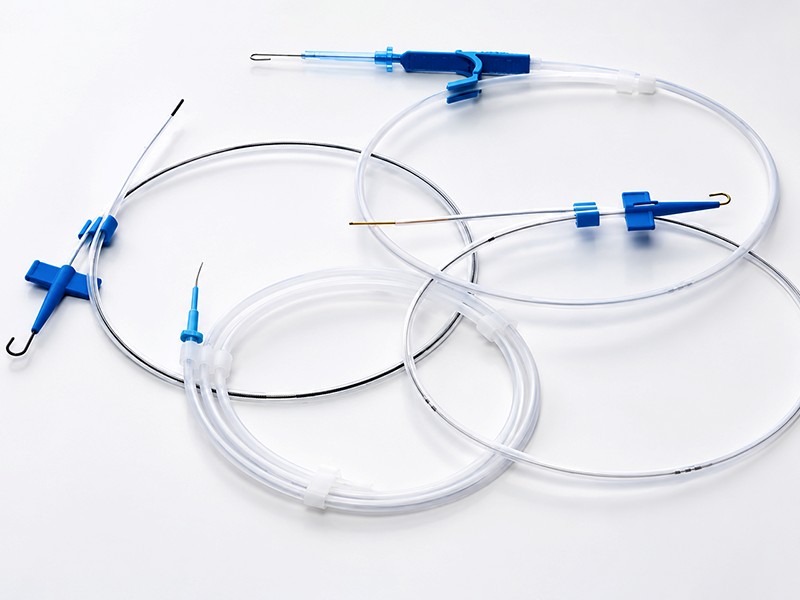

Medical guidewire tiaj hlau

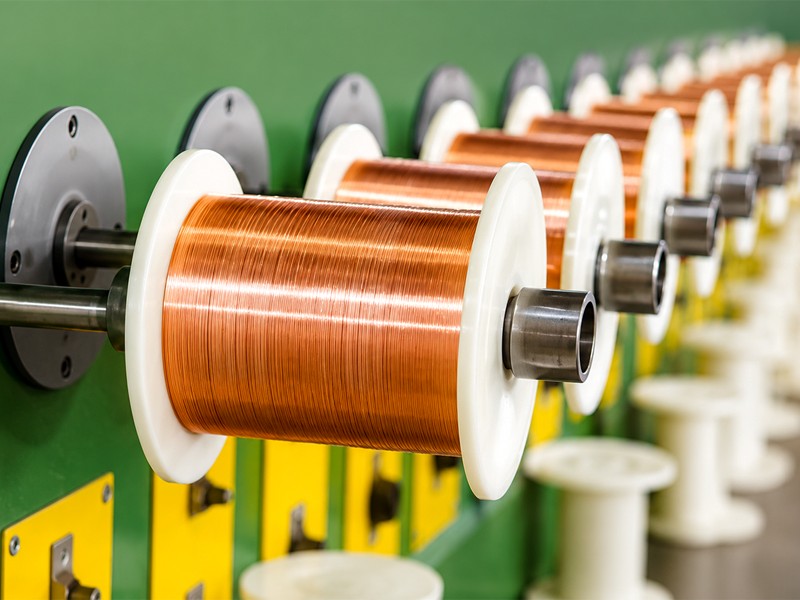

Miniature transformer winding conductors

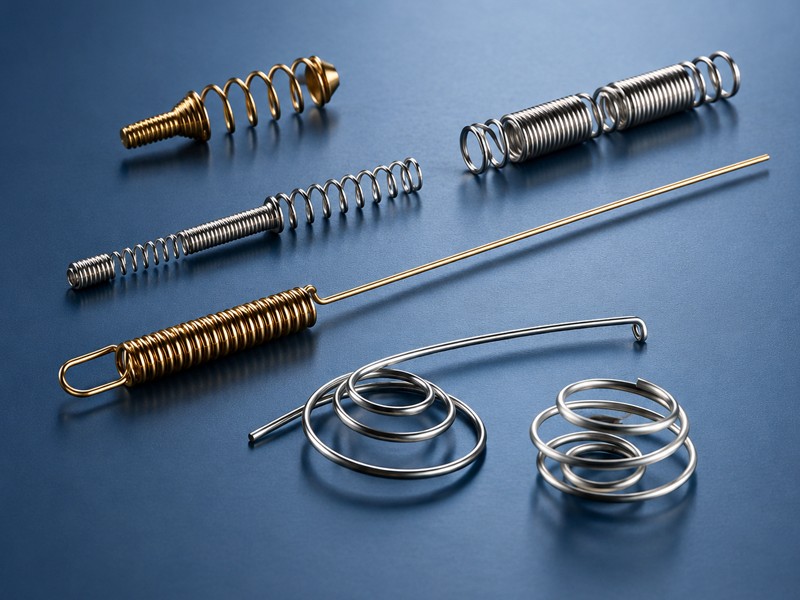

Precision conductive caij nplooj ntoos hlav Cheebtsam
Sensor conductive ntsiab
High-value alloy conductor ntau lawm
FAQ rau Kev Muag Khoom thiab Engineering Pab Pawg
|
Lus nug
|
Teb
|
|
Cov khoom siv dab tsi tuaj yeem ua lub tshuab ua haujlwm?
|
Qhov chaw muab tshwj xeeb hais txog tooj liab puag ncig kos hlau. Lwm cov ntaub ntawv yuav tsum tau tshuaj xyuas los ntawm qib, hardness thiab lub sij hawm txo.
|
|
Cov kab puas tuaj yeem kho tau?
|
Yog lawm. GRM tuaj yeem kho cov kab teeb tsa, tshuaj xyuas cov ntsiab lus, nqa cov lus qhia thiab cov cuab yeej pabcuam tom qab tau txais cov khoom lag luam phiaj xwm.
|
|
Cov ntaub ntawv dab tsi xav tau rau kev hais lus?
|
Khoom siv, input hlau txoj kab uas hla, tiav dav / thickness, kam rau ua, ntau lawm ceev, spool hom, muaj nyob rau hauv pem teb qhov chaw thiab yuav tsum tau cov qauv.
|
|
Cov kab puas suav nrog kev ntxuav hauv kab?
|
Yog lawm, cov txheej txheem piav qhia suav nrog kev tu hauv kab, ziab thiab txau-kua pom.
|
|
GRM puas tuaj yeem muab kev daws teeb meem?
|
Yog lawm. GRM tuaj yeem muab cov kab ntau lawm, kev pom zoo, kev xa khoom, kev taw qhia kev teeb tsa, commissioning thiab kev txhawb nqa kev cob qhia.
|
|
Cov kev ntsuas twg tseem xav tau kev pom zoo?
|
Rolling quab yuam, ntsia lub zog, kab qhov ntev, cov khoom hnyav, cov qauv kawg version, lub sijhawm xa khoom thiab kev lees txais.
|
Vim li cas thiaj xaiv GRM?
Precision Rolling Solutions rau ruaj khov thiab muaj tseeb hlau ntau lawm
20+
Xyoo
Rolling Experience
Kev txawj ntse hauv precision dov, hlau flattening, kos duab-dov kev koom ua ke thiab kev tswj nruj.
Customized
Kab Configuration
Kev daws teeb meem raws li cov khoom siv, hlau loj, kam rau ua, ceev thiab muaj peev xwm ntau lawm.
100+
Nruab kab
Cov ntaub ntawv pov thawj hauv PV ribbon, MBB hlau, tooj liab ca hlau thiab precision conductor raug.
Lub neej voj voog
Kev pab txhawb nqa
Kev them nyiaj yug rau installation, commissioning, kev cob qhia, spare qhov chaw thiab cov cuab yeej hloov khoom dua tshiab.
Siab Precision
Kev tswj kom raug ntawm thickness, dav, nro thiab nto zoo.
Yooj yim tsim
Modular khoom layout rau txawv hlau qhov ntau thiab tsawg thiab cov txheej txheem kev.
Kev Pabcuam Kev Ntseeg
Kev txhawb nqa rau kev teeb tsa, kev saib xyuas thiab kev hloov kho yav tom ntej.
