4 High Nqaim Sawb Rolling Mills Reversible

GRM-S 4 siab nqaim sawb dov mills thim rov qab los ntawm GRM Rolling Mill Hoobkas yog tsim los rauprecision dov ntawm nqaim strips hauv qab 140 mm dav. Nruab nrog ib tug reversible dov qauv, PLC, touchscreen thiab servo tswj system, lub zeb enables multi-pass dov ntawm slit strip cov ntaub ntawv uas zoo heev thickness raug, strip flatness thiab ntug zoo. Nws yog ib qho kev daws teeb meem zoo tshaj plaws rau cov ntawv thov muaj txiaj ntsig uas xav tau ob qho tib si precision thiab ntau lawm yooj.

Xa lus nug

Product Description

GRM ib leeg sawv rov qab mills yog tsim rau precision dov ntawm ntau yam ntaub ntawv xws li silicon steel, stainless hlau, txhuas alloys thiab titanium alloys. Lub reversible dov hom tso cai hloov pauv raws sijhawm raws li cov khoom siv thiab lub hom phiaj thickness.

Featuring ib tug compact layout thiab siab nqi-kev ua tau zoo piv, lub zeb yog tshwj xeeb tshaj yog haum rau me me-rau-nruab nrab batch ntau lawm, R & D daim ntaub ntawv thiab multi-specification ua.

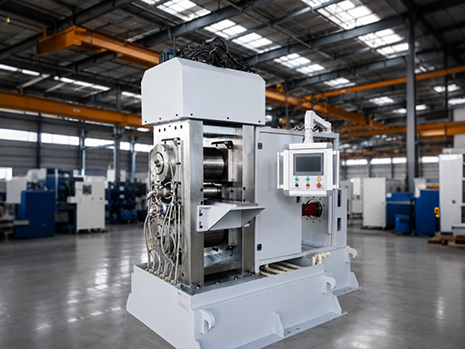

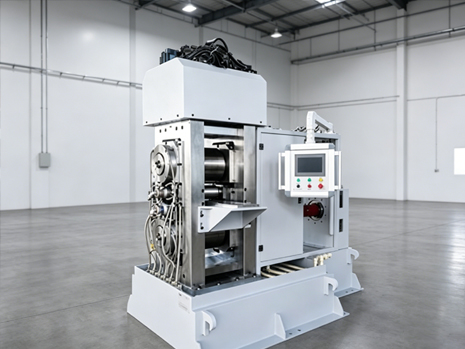

4 High Narrow Strip Rolling Mills Reversible

Cov ntaub ntawv siv tau

Nyiaj thiab nyiaj alloy strips

Aluminium alloy strips

Aluminium-raws li clad strips

Stainless hlau strips

Silicon hlau strips

Titanium alloy thiab titanium clad strips

Kev teeb tsa

Ib qho kev txais platform ntawm ob sab nkag thiab tawm

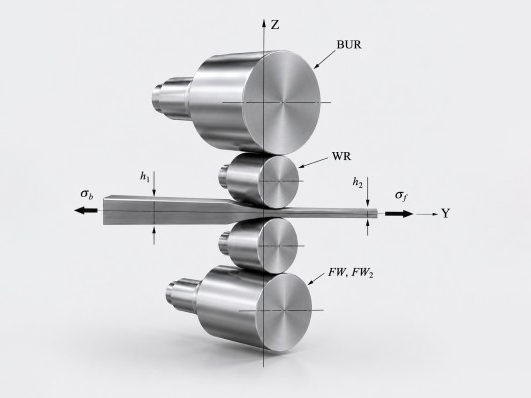

4-siab reversing dov zeb lub ntsiab chav tsev

Kev ywj pheej tsav sab sauv thiab qis yob rau asynchronous dov

PLC + HMI + Servo kev tswj qhov system

Technical Data

Stand Hom	4-High Single Stand Reversing Mill
Input Thickness	0.5-10 hli
Tawm Thickness	0.2-0.8 hli
Sawb dav	100-140 hli
Thickness kam rau ua	± 0.015 hli
Bearing Lubrication	Kaw-circuit tsis siv neeg roj lubrication
Backup Roll Diameter	Φ300 × 200 hli
Ua Haujlwm Roll Diameter	Φ120 × 200 hli
Tsim Ceev	0-0.4m / s
Rolling Force	≥ 80 T

Qhov zoo

Reversible Rolling Design

Flexible pass tswj rau cov khoom sib txawv thiab thickness ntau yam.

High Precision Tswj

Lub 4 siab nqaim sawb rolling mills thim rov qab yog nruab nrog tag nrho servo tsav thiab PLC tswj qhov system, ua tiav cov tuab tuab txog li 0.015 hli.

Compact Mill Stand Tsim

Ib leeg sawv ntsug nrog me me hneev taw, zoo tagnrho rau me me thiab nruab nrab batch ntau lawm nrog ntau yam khoom specifications.

Kev xaiv

Electromagnetic yob cua sov system (150-250 ° C)

Enables hloov ntawm txias dov thiab sov dov hom.

4-siab mus rau 2-siab conversion qauv

Tshwj xeeb rau yav tom ntej txheej txheem expansion thiab kub dov daim ntaub ntawv.

FAQ

Q1: Dab tsi yog qhov siab tshaj plaws sawb dav?

GRM: Qhov siab tshaj plaws sawb dav yog 140 hli, tsim rau precision nqaim strip dov daim ntaub ntawv.

Q2: Lub tshuab puas tuaj yeem ua cov hlau tsis muaj steel thiab silicon hlau?

GRM: Yog. Peb 4 siab nqaim sawb rolling mills reversible yog tshwj xeeb tshaj yog haum rau cov ntaub ntawv nyuaj-rau-yob xws li stainless hlau thiab silicon hlau.

Q3: Lub zeb puas tuaj yeem ua haujlwm nrog annealing lossis pickling kab?

GRM: Yog. GRM tuaj yeem muab cov kev daws teeb meem suav nrog cov kab annealing, pickling systems thiab coil tuav cov cuab yeej.

GRM tshwj xeeb hauv precision nqaim sawb dov cov kev daws teeb meem, muab cov khoom siv nrog cov neeg siab, kev ntseeg siab thiab kev ua haujlwm zoo. Ntxiv nrog rau ib qho kev muag khoom rov qab mills, peb kuj muab cov kev sib cog lus ntau-sawv dov mills, nruam dov kab thiab customized hlau ua tshuab.
Tiv tauj peb hnub no rau kev daws teeb meem rau koj cov khoom siv thiab kev tsim khoom.

Hot Tags: 4 High Narrow Strip Rolling Mills Reversible, GRM, Precision nqaim sawb, nyob rau hauv 140mm nqaim sawb dov zeb
