Nees nkaum-High Rolling Mill

Tuam Tshoj Nees nkaum-High Rolling Mill los ntawm GRM Machinery yog lub siab-precision dov zeb siv rau txias dov hlau los xij thiab ultra-nyias strips. Nws yog tsuas yog siv rau zus tau tej cov nyias thiab ultra-nyias strips xws li txias dov stainless hlau, silicon steel, high-zog hlau thiab alloys. Nws yuav luag txog 96% ntawm lub ntiaj teb stainless hlau ntau lawm thiab yog dav siv nyob rau hauv kev lag luam xws li tsheb, khoom siv hauv tsev, electronics, aerospace, thiab lwm yam uas yuav tsum tau high precision thiab zoo ntawm cov ntawv hlau.

Xa lus nug

Product Description

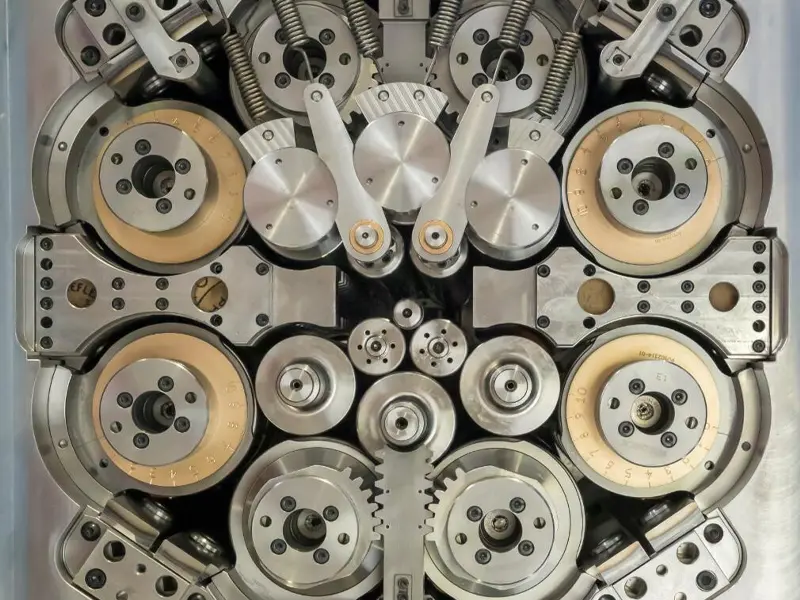

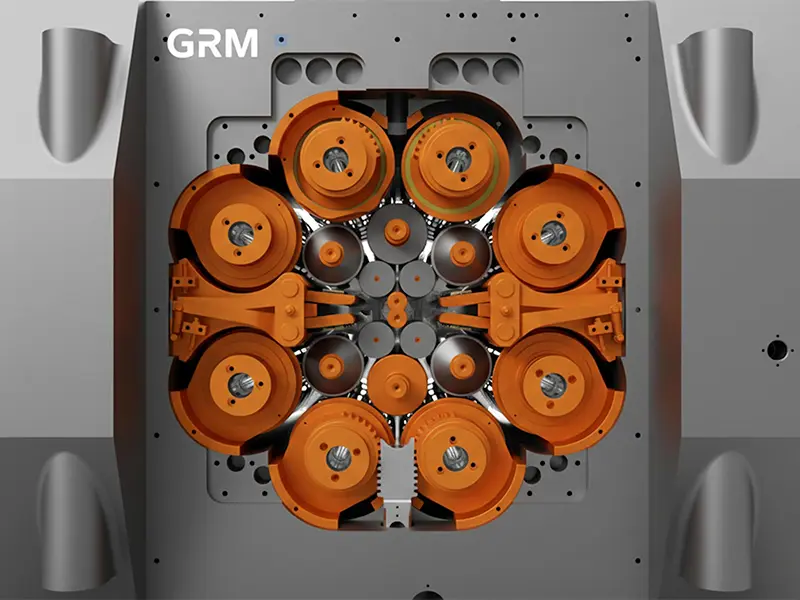

Tuam Tshoj GRM Nees nkaum-High Rolling Mill yog muab los ntawm GRM Machinery Nees nkaum-High Rolling Millis Roan clamp hom zeb, uas siv cov tshuab hydraulic tsis siv neeg siab heev thiab ua ke nrog cov menyuam tswj kom ua tiav cov phaj zoo thiab tuab tuab. Cov khoom siv tuaj yeem hloov pauv ntawm 20-yob thiab 8-yob hom, haum rau precision dov ntawm cov khoom sib txawv. Nws cov kev ua haujlwm siab, txuag hluav taws xob thiab kev ua haujlwm yooj yim ua rau nws yog qhov kev xaiv zoo tshaj plaws rau kev lag luam high-end hlau ua.

Cov ntawv thov kev lag luam

• Precision dov ntawm stainless hlau, carbon hlau, tooj liab, txhuas thiab lwm yam hlau los xij

• Aerospace High-precision alloy daim ntawv ntau lawm

• Electronic manufacturing Ultra-nyias hlau khoom ntau lawm

• Lub zog tshiab Lithium roj teeb ntawv ci, kev lag luam photovoltaic precision sawb raug

• Kev tsim tsheb tsim cov khoom siv hlau hnyav ua haujlwm

Daim ntawv thov

Teb	Cov xwm txheej
Precision stainless hlau manufacturing	Daim iav stainless hlau sawb (Ra≤0.01μm): high-end khoom vaj huam sib luag, elevator hniav panels
Kev ua cov khoom siv hluav taws xob tshiab	Daim iav stainless hlau sawb (Ra≤0.01μm): high-end khoom vaj huam sib luag, elevator hniav panels
Aerospace	Nickel-raws li alloy daim ntawv rau aircraft engine
Kev txhim kho cov khoom siv	Hlau txheej txheej, nanocrystalline ribbons

Core zoo

• Ultra-nyias dov: yam tsawg kawg nkaus thickness tuaj yeem ncav cuag 0.001mm (1μm)

• Ultra-siab precision: servo hydraulic AGC + X-ray / hu rau thickness gauge, thickness raug mus txog ± 0.002mm

• Yooj yim dov: nees nkaum rollers / yim rollers tuaj yeem hloov tau kom tau raws li qhov sib txawv thickness

• Me me hneev taw, yooj yim rau nruab: compact qauv tsim, yooj yim rau kev khiav lag luam, tuaj yeem ua haujlwm los ntawm ib tus neeg ntawm nws tus kheej

Technical Parameters

qhov project	Specifications
Rolling zeb hom	Nees nkaum-siab hydraulic dov zeb

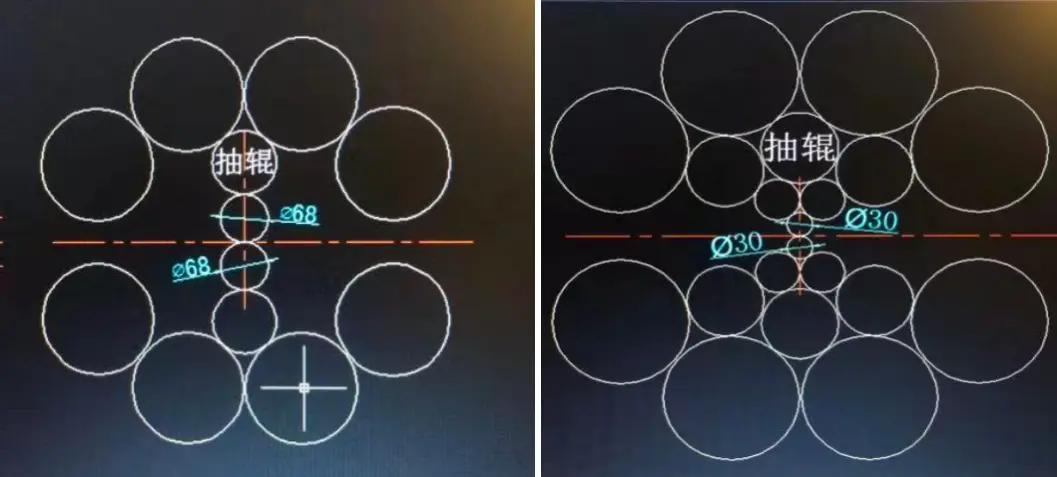

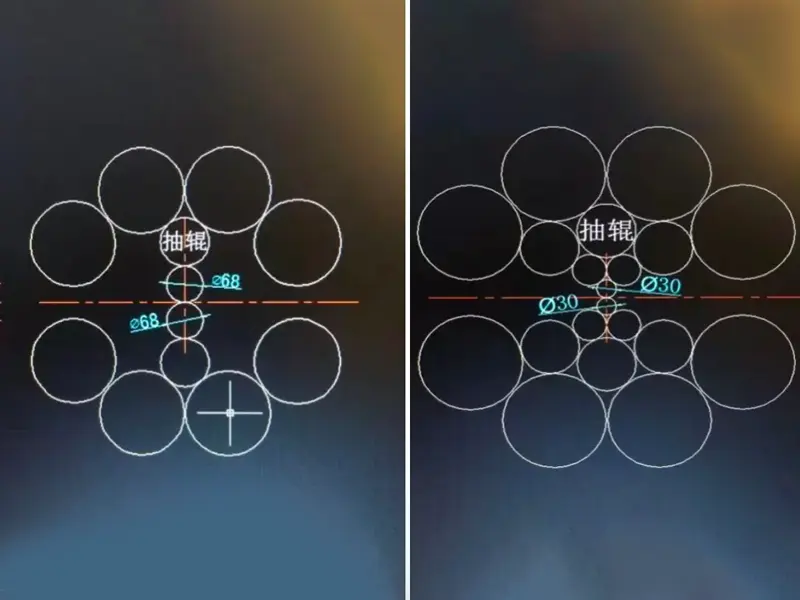

Ua haujlwm yob txoj kab uas hla	Yim hom menyuam: Φ68mm
Ua haujlwm yob txoj kab uas hla	Nees nkaum hom hom: Φ30mm
Pub thickness	1.2 hli
Yam tsawg kawg nkaus cov khoom thickness	0.03mm ib
Qhov siab tshaj plaws bandwidth	280 hli
Rolling ceev	0-120m / min
Main lub cev muaj zog	90KW (AC zaus hloov dua siab tshiab + reducer)
Lub cev muaj zog siab	75KWx2 teeb (1:18 txo)
Lub cev muaj zog me me	7.5KWx2 teeb (1: 3.54 / 1: 11.1 txo)

Vim li cas thiaj xaiv peb?

• Cov thev naus laus zis tshiab: kev lag luam-ua hydraulic AGC + ntse tswj qhov nro kom ntseeg tau qhov kawg

• Kev ua tau zoo tus nqi: qis zog noj thiab kev saib xyuas yooj yim dua piv rau cov tsoos nees nkaum-siab mills

• Kev ua tau zoo ntau lawm: loj ib leeg xovxwm ntim, txo tag nrho cov passes thiab annealing lub sij hawm, thiab txhim kho productivity

• Muaj kev nyab xeeb thiab ruaj khov: tag nrho AC zaus hloov pauv tswj, tsis tshua muaj suab nrov, nrog ntau yam kev tiv thaiv kev nyab xeeb

Powering Tomorrow's Manufacturing - GRM Mills Redefine Precision Rolling
