GRM Ob Lub Tshuab Rolling Tshuab yog lub tshuab ua kom muaj zog thiab ntau yam hlau tsim los txo cov tuab, kho qhov sib txawv ntawm qhov ntev, thiab tsim ntau yam hlau hlau, strips, thiab profiles.
Lub tshuab muaj ob kab rov tav ua haujlwm yob. Thaum lub sijhawm ua haujlwm, cov khoom siv dhau los ntawm qhov sib txawv ntawm qhov sib txawv thiab raug tswj xyuas cov yas deformation nyob rau hauv lub siab dov, ua tiav qhov yuav tsum tau ua kom txo qis, qhov dav hloov kho, lossis kev tsim profile.
Lub Ob Lub Siab Rolling Mill tuaj yeem siv los ua ib qho chaw dov ib leeg rau kev txhim kho cov khoom siv thiab cov khoom me me, los yog muab tso rau hauv GRM txuas ntxiv dov kab raws li kev tsim khoom tshwj xeeb.

Xa lus nug

Product Description

Txoj Cai Ua Haujlwm

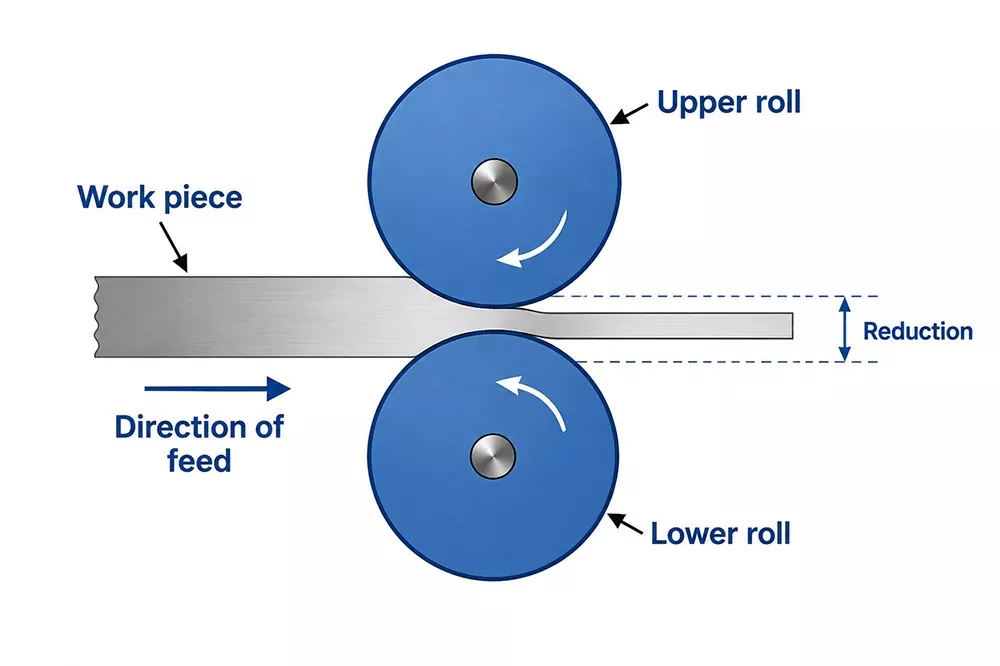

Ob Lub Siab Rolling Mill ua cov khoom txo qis los ntawm kev sib hloov ntawm ob qhov kev tawm tsam ua haujlwm yob.

Lub sab sauv thiab sab yob tig nyob rau hauv opposite lus qhia, kos cov khoom mus rau hauv lub yob sib txawv thiab siv compressive quab yuam kom ua tiav cov yas deformation.

Los ntawm kev hloov kho qhov sib txawv ntawm qhov yob, qhov txo qis thiab qhov kawg ntawm cov khoom tuaj yeem tswj tau.

Cov yam ntxwv tseem ceeb

Cov qauv yooj yim thiab muaj zognrog kev ua haujlwm yooj yim thiab kev saib xyuas.
Kev siv yooj yimrau hlau, sawb, thiab profile dov txheej txheem.
Haum rauib leeg-dhau dov, kev sim cov khoom siv, thiab cov khoom me me.
Yuav siv tau los ua ib lub tshuab dov ywj siab lossis koom ua ke hauv GRM cov kab ntau lawm.

Technical Specifications

Qauv	Roll Diameter × Yob Dav (mm)	Rolling quab yuam (kN)
GRM-2H60	Luas 60 x 30	15kn ua
GRM-2H80	80x40 ua	30kn ua
GRM-2H106	106 x 40	50kn ua
GRM-2H120	Φ120x40	70kn ua
GRM-2H160	Φ160x80	160 kN ib
GRM-2H180	Φ180x80	220 kN ib
GRM-2H200	Φ200x80	280kn ua
GRM-2H400	Φ400x80	700kn ua

Daim ntawv thov

GRM Ob Lub Tshuab Rolling Siab tuaj yeem siv rau hauv ntau yam txheej txheem hlau, suav nrog:

Round hlau flattening
Hlau strip thickness txo
Pav ca hlau, ib nrab-vim hlau, thiab yooj yim profile hlau sib sau
Laboratory tshawb fawb thiab kev tsim khoom
Me-batch ntau lawm
Ib leeg dov units tau muab tso rau hauv cov kab ntau lawm

Cov khoom siv xws li:

Tooj
Aluminium
Stainless hlau
Lwm cov ntaub ntawv uas tsis yog-ferrous thiab ferrous hlau

Cov lus nug nquag

1.Ob Qhov Rolling Mill siv rau dab tsi?

Ob Lub Siab Rolling Mill feem ntau yog siv rau hlau flattening, strip txo, thiab yooj yim profile forming. Nws yog tsim rau kev sim cov khoom, me me-batch ntau lawm, thiab ib-thooj dov daim ntaub ntawv.

2.Dab tsi yog qhov txawv ntawm Ob Lub Siab Rolling Mill thiab Plaub Lub Siab Rolling Zeb?

Ob Lub Siab Rolling Mill muaj cov qauv yooj yim thiab tsim nyog rau kev dov thiab kev tsim cov txheej txheem. A Plaub High Rolling Mill muab ntau dua rigidity thiab precision, ua rau nws haum rau nyias strip dov thiab daim ntaub ntawv uas muaj ntau dua qhov yuav tsum tau.

3.Cov ntaub ntawv dab tsi tuaj yeem dov?

Lub zeb tuaj yeem tsim rau ntau yam hlau, suav nrog tooj liab, txhuas, stainless hlau, thiab lwm yam alloys. Qhov kawg configuration nyob ntawm cov khoom siv thiab cov khoom xav tau.

4.Dab tsi yog qhov txheej txheem ntws?

Ib txheej txheem ib txwm muaj xws li:

Them tawm → Kev taw qhia → Ob lub siab dov → Kev tshuaj xyuas → Kev thauj mus los

Cov txheej txheem tuaj yeem hloov kho raws li qhov xav tau ntau lawm.

5.Cov dov yob puas tuaj yeem hloov kho?

Yog lawm. GRM muab customized yob tsim raws li cov khoom zoo, cov yam ntxwv ntawm cov khoom, nto yuav tsum tau, thiab ntau lawm muaj peev xwm.
