Ib leeg Stand Multi-groove Txo Rolling Mill

GRM Rolling Mill muaj qhov zoo tshaj plaws Ib Leeg Stand Multi-groove Txo Rolling Mill. Cov cuab yeej siv no siv cov cuab yeej hloov pauv hloov tau ntau qhov zawj dov, ua rau nws yog qhov kev daws teeb meem zoo tshaj plaws rau kev kuaj cov khoom siv, cov khoom siv me me, thiab kev ua ntau yam.
1. Kev tswj kom ruaj khov
2. Adjustable dov ceev

Xa lus nug

Product Description

Tsim los rau high-precision txoj kab uas hla yuav txo tau, Lub Ib Leeg Stand Multi-groove Txo Rolling Mill sib txuas ua tau yooj yim ntau lawm muaj peev xwm nrog ruaj khov dov kev ua tau zoo.

Nws multi-groove tsim tso cai rau ntau qhov ntau thiab tsawg ua tiav los ntawm kev siv ib txheej yob, txo cov sijhawm hloov pauv thiab txhim kho efficiency.

Lub zeb ua kom muaj qhov sib npaug ntawm qhov raug, zoo heev saum npoo zoo, thiab kev ua haujlwm txhim khu kev qha thoob plaws ntau yam ntawm ferrous thiab non-ferrous cov ntaub ntawv.

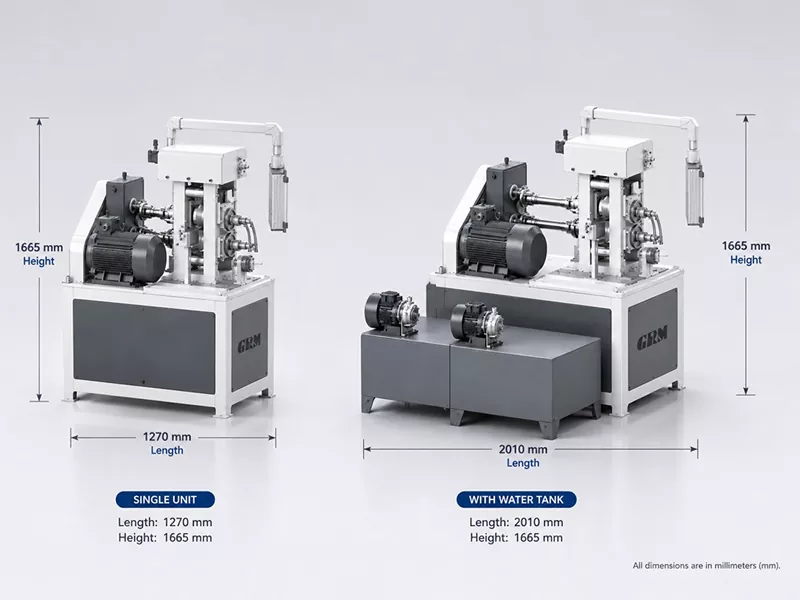

Single Stand Multi-Groove Reducing Rolling Mill

Main Technical Parameters

Yam khoom	Specification
Siv tau Raw Material	Tooj, hlau, thiab alloys (xws li hlau-raws li, titanium-based, thiab txhuas-raws li cov ntaub ntawv)
Max. Input Diameter	Φ30 hli
Input Length	200 hli

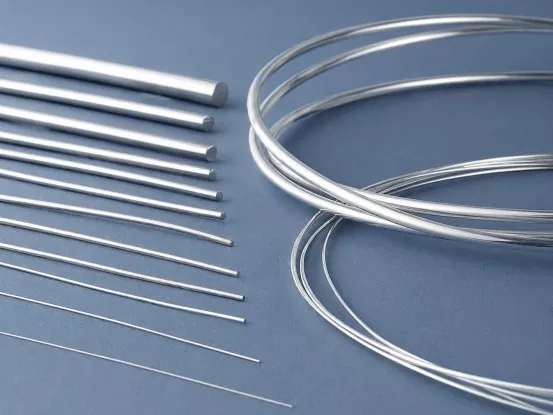

Cov khoom tiav Qhov Loj Ntau Yam	Φ1-9 hli
Nto Zoo	Smooth, tiaj tus, tsis muaj yoj
Rolling Ceev	0.5-3 m / s (kho tau)

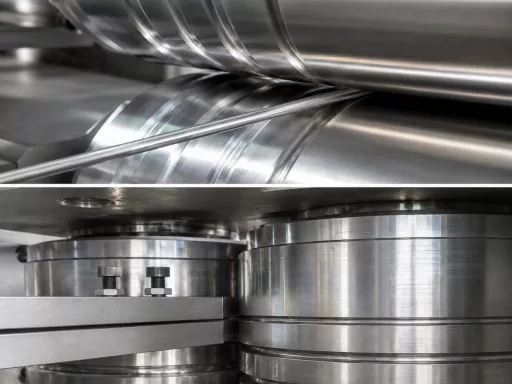

Ua Haujlwm Roll Size	φ160mm × 400mm

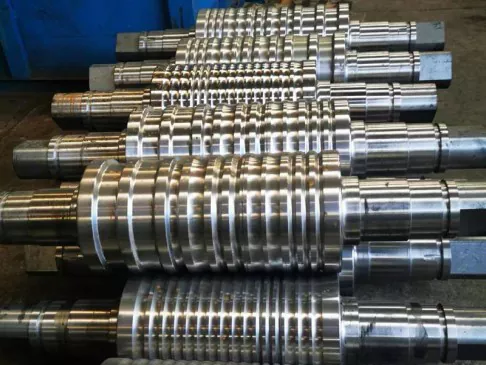

Number of Grooves	25 dhau
Khoom Tolerance	± 0.05 hli
Txo tus nqi (ib kis)	3% -15% (txo micro-tension)
