Hnub Ci PV Round Hlau Tshuab

GRM Rolling Mill yog lub chaw tsim khoom thoob ntiaj teb ntawm cov khoom siv ntau lawm (xws li Hnub Ci PV Round Wire Tshuab) thiab ua tiav cov kev daws teeb meem rau photovoltaic ribbons, tshwj xeeb tshaj yog MBB ribbons. Peb tshwj xeeb hauv kev muab cov cuab yeej siv dav dav rau kev tsim cov kab sib txuas-cov khoom siv tseem ceeb rau PV modules-nrog rau kev kos duab kos duab, lub sijhawm, thiab kev txawj ntse winding. Peb cov cuab yeej tsim los ua kom muaj kev ruaj ntseg tshwj xeeb thiab sib xws hauv ribbon geometry, txheej txheej, thiab cov khoom siv kho tshuab, uas yog lub hauv paus rau kev txhim kho cell efficiency thiab kev cia siab rau lub sijhawm ntev.

Xa lus nug

Product Description

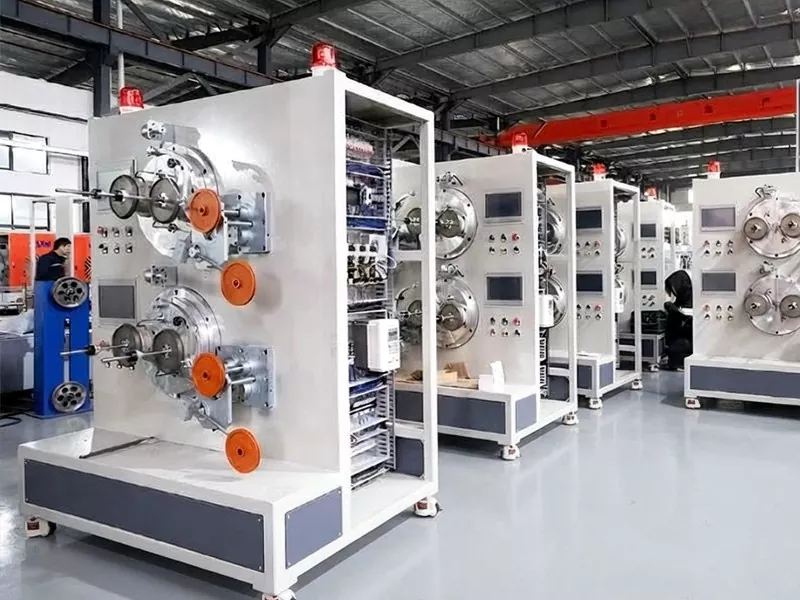

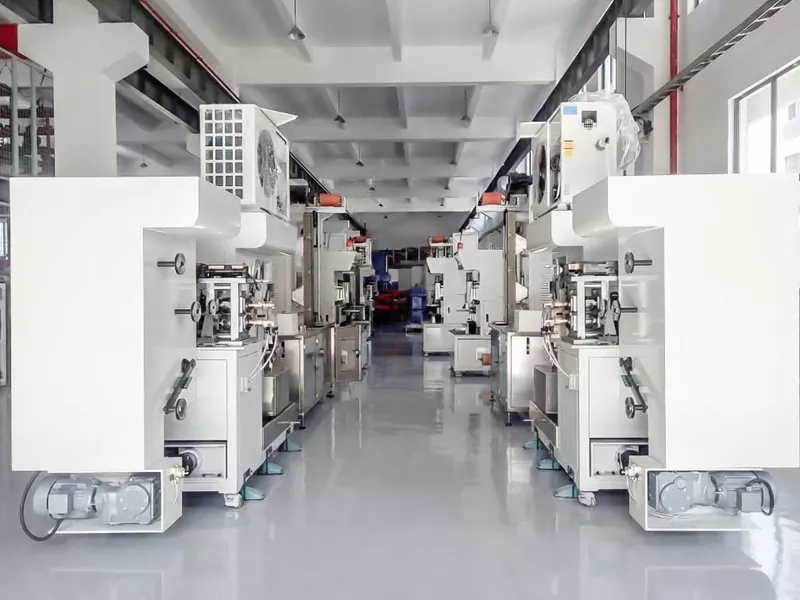

GRM photovoltaic ribbon production line overview

❮

❯

1 / 3

GRM Photovoltaic Ribbon Ntau Lawm Kab

GRM Hoobkas tshwj xeeb hauv R & D thiab kev tsim khoom tiav Cov kab ntau lawm rau kev ua haujlwm siab photovoltaic ribbons, tshwj xeeb tshaj yog MBB (Multi-Busbar) ribbons. Peb Hnub Ci PV Round Hlau Tshuab yog tsim los ua kom tau raws li qhov kev lag luam escalating xav tau precision thiab kev ua tau zoo, ua kom tiav cov txheej txheem precision tswj los ntawm raw khoom rau cov khoom tiav. Qhov no enables peb cov neeg muas zaub tsim cov ribbon zoo nrog tshwj xeeb conductivity, soldering kev ntseeg tau, thiab lub sij hawm ntev huab cua tsis kam.

Core Specifications

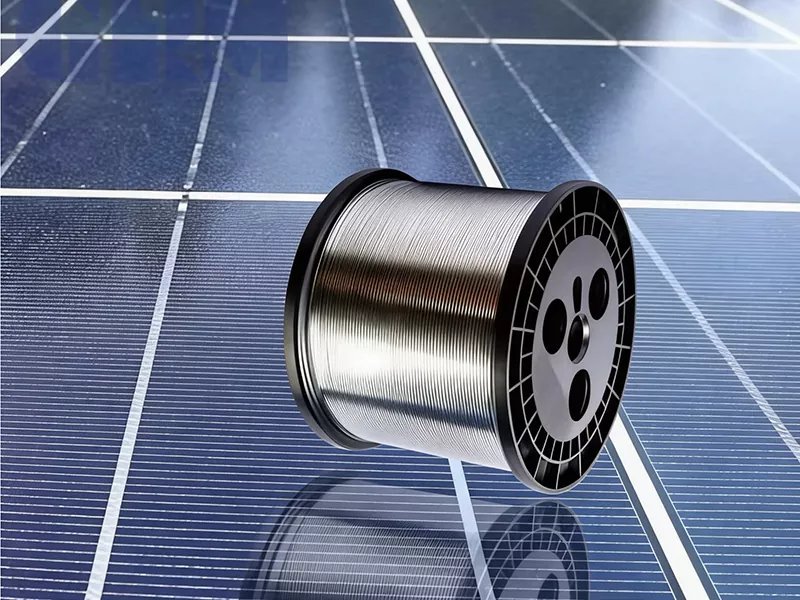

Kev Ua Ntau Yam: Kov cov xaim xaim mus txog 1.6 hli siab tshaj txoj kab uas hla, ua tiav ribbon hauv qhov tseeb ntawm 0.15 hli txog 0.4 hli.

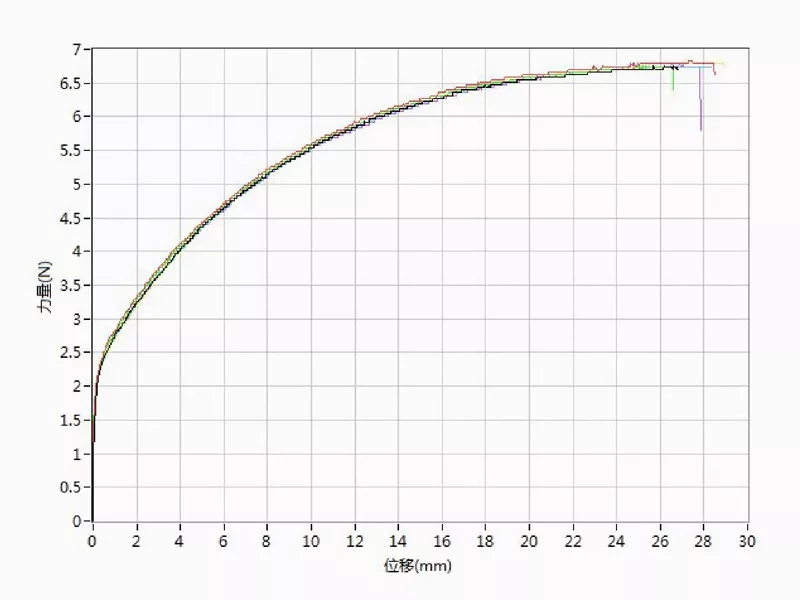

Lub Hom Phiaj Tseem Ceeb: Txhawm rau kom cov ribbon tiav dhau cov qauv kev lag luam hauv kev ua tau zoo sib xws, txheej thickness / uniformity, yield zog stability, thiab concentricity / shape conformity.
Kev Ua Haujlwm Zoo: Kev sib koom ua ke hauv kev tshuaj xyuas hauv online tau lees paub 100% ua raws li cov qauv nruj nruj ntawm PV kev lag luam.

GRM-RWRM-AT automatic bobbin loading system

Automatic tin feeding and timing systems on PV ribbon line

❮

❯

1 / 3

PV round wire machine PLD coordinated line speed control

Ntsiab Technology Advantages

Siv PLD (Programmable Logic Drive) txoj cai rau kev sib koom ua ke ntawm kab nrawm, ua kom muaj kev sib hloov ceev thiab ua haujlwm zoo.

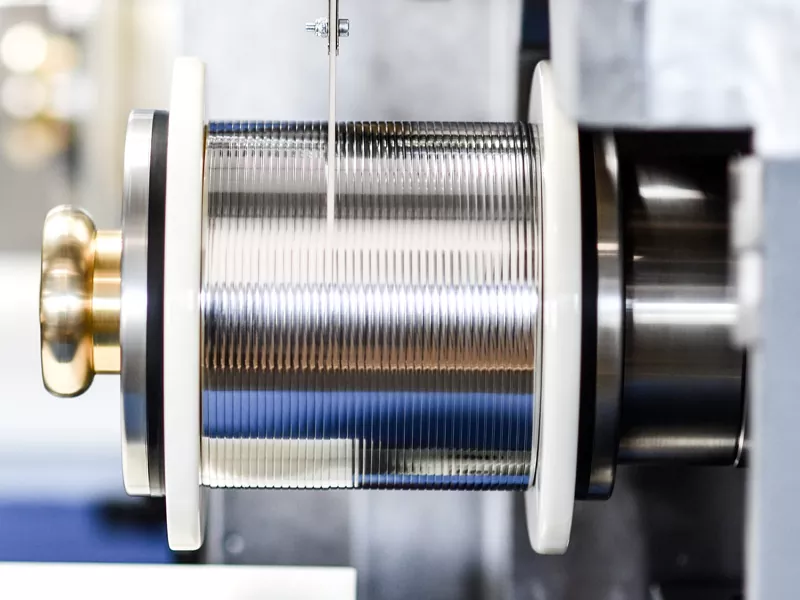

Servo-lub cev muaj zog tswj coj-up kom ruaj khov thiab zoo coil winding.
Proprietary Winding Technology: "Wire Moving" (rau cov xaim nyob ib puag ncig) thiab "Bobbin Moving" (rau ribbon tiaj tus)

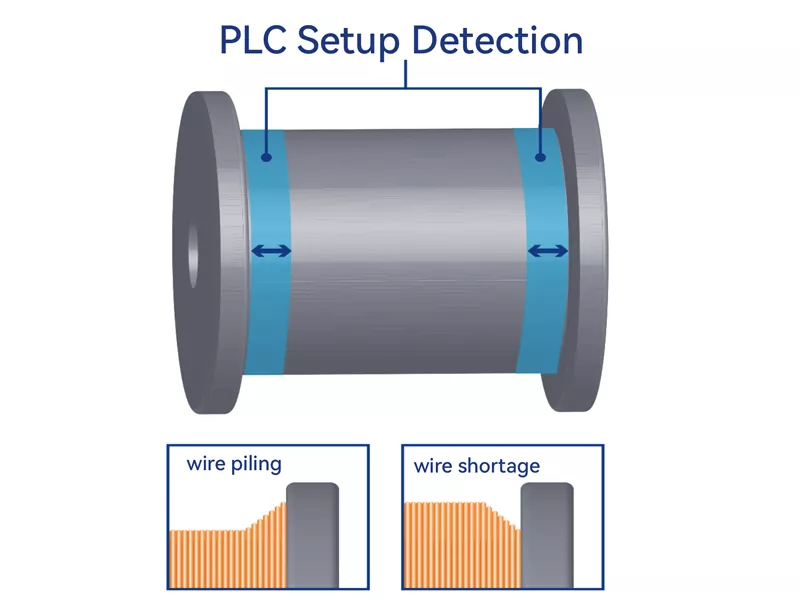

Lub hauv paus ua kom nruj heev thiab tsis sib xws winding, tshem tawm tag nrho "kev sib tshooj" thiab "qhov sib txawv winding", ua rau muaj peev xwm nce ntxiv thiab kev them nyiaj ruaj khov.

Yooj yim Configuration Options

GRM muaj ob qho tag nrho Tsis Siv Neeg thiab Semi-Automatic qauv kom haum rau cov peev txheej sib txawv thiab cov kev xav tau automation txog hnub ci PV Round Wire Tshuab.

Technical Data
Qauv	Inlet Loj	Tiav Loj	Ceev	Yield zog
GRM-RWM	Φ1-Φ0.6 hli	Tom qab txheej: φ0.15-0.4mm	400m / min	60-75MPa
GRM-RWRM-AT	Φ1-Φ0.6 hli	Tom qab txheej: Φ 0.15-0.4mm	600m / min	60-75MPa

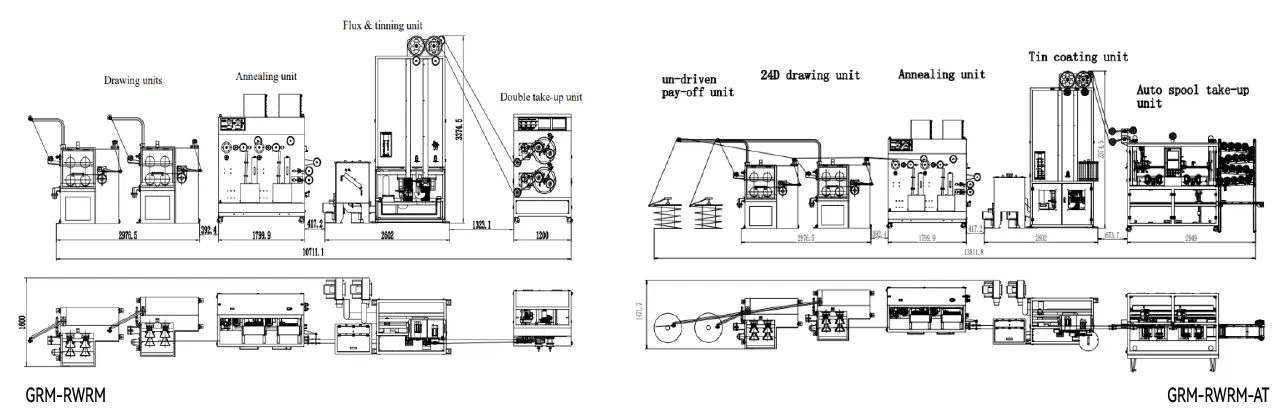

GRM-RWRM-AT fully automatic PV ribbon production model

Tus qauv GRM-RWRM-AT integrates ib tug tsis siv neeg bobbin loading system, drastically txo phau ntawv cuam tshuam; nws tseem tau nruab nrog tsis siv neeg tin pub mis thiab lub sijhawm ua haujlwm kom paub meej cov khoom lag luam tas mus li thiab cov txheej txheem sib xws.

Kev Paub Txog Kev Ua Lag Luam

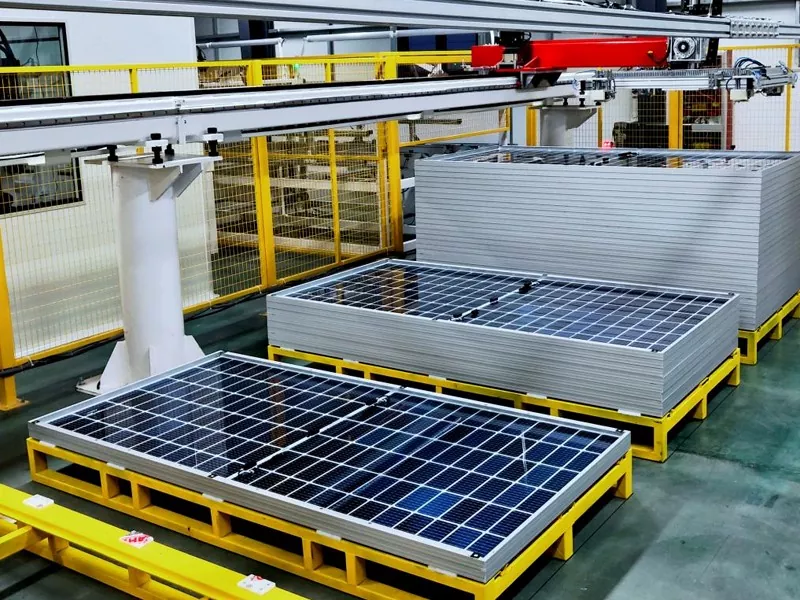

Peb cov cuab yeej tau txais kev ntseeg siab thiab kev coj ua ntawm cov tuam txhab PV thoob ntiaj teb. Cov neeg koom tes tseem ceeb suav nrog JA Hnub Ci, Trina Solar, Aditya Birla Group, thiab lwm yam kev lag luam cov qauv ntsuas, txhawb nqa lawv cov khoom loj ntawm cov khoom siv tes ua haujlwm zoo.

GRM tau cog lus los ua koj tus khub txhim khu kev qha hauv kev txhim kho ribbon zoo, txo cov nqi tag nrho, thiab ntxiv dag zog rau koj cov kev lag luam tseem ceeb hauv kev sib tw los ntawm cov cuab yeej siv thev naus laus zis thiab kev nkag siab tob tob. Txais tos tiv tauj peb thiab yuav peb cov khoom zoo Hnub Ci PV Round Hlau Tshuab!
