Yuav Ua Li Cas Ib Daim Ntawv Rolling Mill txo cov khib nyiab thiab Boost Coil Consistency?

Abstract

Ib txoj kab rolling tuaj yeem yog qhov sib txawv ntawm kev kwv yees, cov coils uas tau txais txiaj ntsig thiab kev sib ntaus txhua hnub nrog cov thickness drift, cov duab tsis txaus siab, qhov tsis xws luag, thiab lub sijhawm poob qis. Yog tias koj tab tom yuav lossis kho dua tshiabSawb Rolling Mill, koj tsis yog them rau cov menyuam thiab cov thav ntawv xwb - koj them rau kev rov ua dua, kev tswj hwm, thiab cov txheej txheem uas tiv thaiv koj cov paj. Kab lus no rhuav tshem cov ntsiab lus ntawm tus neeg yuav khoom ntau tshaj plaws (khoom, waviness, flatness, deg marks, qeeb hloov, siv lub zog siab) thiab piav qhia txog qhov twg zeb nta tau daws lawv. Koj tseem yuav tau txais ib daim ntawv teev npe xaiv, ib lub rooj sib piv, thiab daim ntawv qhia kev ua haujlwm-thiab-kev saib xyuas kom koj cov peev txheej muab cov ntsuas ruaj khov, cov txiaj ntsig zoo dua, thiab kev ua haujlwm yooj yim dua txij hnub ib.

Cov ntsiab lus

• Cov ntsiab lus
• Dab tsi yog Strip Rolling Mill?
• Tus neeg yuav khoom Pain Points thiab qhov kho tiag tiag
• Cov ntsiab lus tseem ceeb uas txiav txim siab cov txiaj ntsig
• Xaiv txoj cai Configuration
• Specification Checklist ua ntej koj kos npe
• Installation, Commissioning, thiab Ramp-Up
• Kev tu thiab kev tswj xyuas tus nqi
• Yuav Tau Txais Dab Tsi Los Ntawm Tus Neeg Siv Khoom Zoo
• FAQ

Cov ntsiab lus

• Txhais tau hais tias lub sawb dov zeb ua dab tsi thiab qhov twg nws zaum hauv cov saw hlau ntau lawm
• Txuas cov kev ua tau zoo thiab cov nqi teeb meem rau cov hauv paus hauv paus hauv cov txheej txheem dov
• Piav cov tshuab tswj thiab cov khoom siv kho tshuab uas ruaj khov thickness, zoo, thiab nto
• Sib piv cov qauv zeb layouts kom cov neeg yuav khoom tuaj yeem phim cov cuab yeej rau cov khoom sib xyaw
• Muab daim ntawv teev npe ua ntej yuav khoom uas txo qhov project thiab kev pheej hmoo ua haujlwm
• Qhia tawm kev ua haujlwm thiab kev saib xyuas kev coj ua uas tiv thaiv lub sijhawm thiab tawm los

Dab tsi yog Strip Rolling Mill?

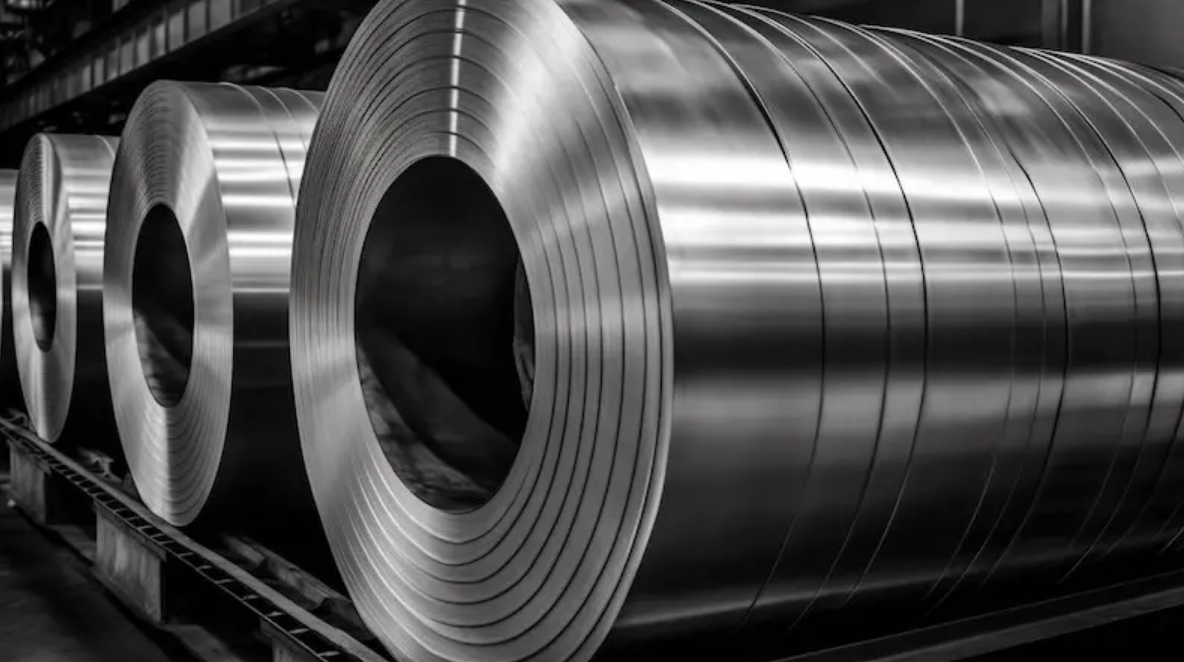

A Sawb Rolling Milltxo cov hlau tuab los ntawm kev hla cov sawb (steel, stainless, aluminium, tooj liab, thiab lwm yam alloys) los ntawm ib lossis ntau txheej ntawm rotating rolls. Lub hom phiaj tsis yog "thinner" xwb - nws yoguniform nyias: ruaj khov ntsuas thoob plaws qhov dav, tswj cov yas thiab flatness, huv si saum npoo tiav, thiab cov khoom siv zoo ib yam coil tom qab coil.

Hauv kev xyaum, strip dov yog ib qho system. Dhau li ntawm lub zeb sawv ntsug (s), koj cov txiaj ntsig yog nyob ntawm kev nkag / tawm nruj tswj, coilers / uncoilers, cov lus qhia, yob coolant thiab lubrication, ntsuas sensors (thickness / shape), automation, thiab tus neeg teb xov tooj interface uas ua rau txoj kab khiav zoo tsis txhob ntshai.

Tus neeg yuav khoom Pain Points thiab qhov kho tiag tiag

• Pain point: Thickness drift thiab cov neeg siv khoom tsis lees paub.
  Root ua rau:tsis ruaj tsis khov dov quab yuam, thermal loj hlob, tsis sib xws nruj, kev tawm tswv yim qeeb, lossis ntsuas qhov ntsuas tsis txaus.
  Kho qhov teeb meem:ceev ceev tsis siv neeg ntsuas ntsuas (AGC), txhim khu kev qha thickness ntsuas ntawm qhov chaw zoo, ruaj khov hydraulic screwdown, thiab lub zog nruj uas tsis yos hav zoov.
• Mob taw tes: Tsis zoo flatness, ntug yoj, nruab nrab buckle, thiab "wavy strip."
  Root ua rau:tsis sib npaug elongation thoob plaws dav, yob dabtsi yog khoov los, tsis ncaj ncees lawm crown zoo, los yog inconsistent cov khoom nkag.
  Kho qhov teeb meem:Kev ntsuas cov duab / flatness, yob dabtsi yog khoov lossis hloov kev xaiv (thaum tsim nyog), kev tsim qauv zoo dua, thiab kev sib koom ua ke ntawm cov ntu.
• Pain point: deg defects (kos, chatter marks, pickup, stains).
  Root ua rau:Roll deg mob, coolant/lubrication teeb meem, tsis zoo strip guiding, vibration, paug emulsion, los yog qias neeg coil tuav.
  Kho qhov teeb meem:Kev lim dej huv thiab kev tswj cov dej txias, zoo sawb steering thiab cov lus qhia, kev vibration-paub sawv ntsug tsim, yob sib tsoo kev qhuab qhia, thiab tswj threading/tail-out.
• Mob taw tes: Kev hloov qeeb qeeb thiab tsim khoom qis.
  Root ua rau:phau ntawv teeb tsa cov kauj ruam, tsis muaj zog automation, ntev coil threading lub sij hawm, los yog kev siv tsis zoo rau yob thiab bearings.
  Kho qhov teeb meem:Daim ntawv qhia raws li kev teeb tsa, kev paub HMI, kev hloov pauv ceev ceev cov ntsiab lus uas xav tau, cov ntsiab lus nkag tau yooj yim, thiab cov xov sib txuas ruaj khov.
• Pain point: Tus nqi tu siab thiab tsis tau npaj rau lub sijhawm poob.
  Root ua rau:overloaded bearings, sealing tsis zoo, lubrication tsis muaj zog, overheating, misalignment, los yog tsis muaj lub tswv yim spare.
  Kho qhov teeb meem:Kev xaiv cov kabmob muaj zog, kev sib khi thiab lub tshuab ua haujlwm zoo, kev saib xyuas kev mob, cov txheej txheem sib dhos, thiab tus neeg muag khoom uas xa cov khoom thiab cov ntaub ntawv sai.

Cov ntsiab lus tseem ceeb uas txiav txim siab cov txiaj ntsig

Yog tias koj tsuas yog sib piv cov lej ntawm daim ntawv qhia, koj yuav nco cov tsav tsheb ua haujlwm tiag tiag. Cov ntsiab lus no feem ntau ua los yog rhuav tshem kev ruaj ntseg hauv aSawb Rolling Mill:

• Rolling quab yuam tswj thiab screwdown teb
  Cov sawv ntsug yuav tsum tau hnov ​​​​mob sai sai rau thickness sib txawv yam tsis muaj overshoot. Hydraulic systems thiab tawm tswv yim kho qhov teeb meem ntau npaum li qhov ntsuas quab yuam.
• Automatic Gauge Control thiab ntsuas lub tswv yim
  Gauge tswj tsuas yog zoo li lub teeb liab pub rau nws. Xav txog qhov twg thickness yog ntsuas, ceev npaum li cas lub voj teb, thiab yuav ua li cas lub kaw lus tswj acceleration / deceleration.
• Kev tswj nruj ntawm ntu
  Ntxuam cuam tshuam cov duab, ntsuas, thiab nto. Kev tswj nruj nreem txo cov coil-rau-coil variability thiab tiv thaiv strips so thaum threading thiab ceev hloov.
• Puab/crown tswj
  Cov teeb meem flatness yog kim vim lawv tshwm sim lig - feem ntau tom qab slitting los yog tsim. Yog hais tias flatness yog ib qho tseem ceeb ntawm cov khoom yuav tsum tau, npaj rau kev ntsuas thiab ib tug tswj txoj kev uas phim koj cov khoom ntau yam.
• Coolant, lubrication, thiab pom
  Qhov kub thiab kev sib txhuam cuam tshuam rau qhov ntsuas, qhov chaw, thiab yob lub neej. Lub tshuab ua kom huv thiab tswj tau zoo tuaj yeem txo qhov tsis xws luag thiab pab tswj kev ua haujlwm ruaj khov rau kev khiav haujlwm ntev.
• Kev taw qhia thiab kev taw qhia
  Txawm tias ib qho chaw zoo heev tsis tuaj yeem txuag txoj hlua tsis zoo. Kev taw qhia zoo txo ​​qhov kev puas tsuaj ntawm ntug, txhim kho coiling zoo, thiab txo txoj kev pheej hmoo ntawm kev tawg sai sai.

Xaiv txoj cai Configuration

Tsis muaj ib qho "zoo tshaj" zeb - nws muaj qhov sib tw zoo tshaj plaws rau koj cov khoom lag luam, qhov loj me, thiab lub hom phiaj zoo. Nov yog ib txoj hauv kev los xav txog kev teeb tsa ntau:

Thaum koj tham nrog cov neeg muab khoom, piav qhia txog koj qhov "cov teeb meem nyuaj": qib nyuaj tshaj plaws, qhov dav tshaj plaws, lub hom phiaj thinnest, thiab qhov yuav tsum tau ua kom nruj tshaj plaws. Ib lub zeb uas zoo nkaus li zoo kawg nkaus ntawm qhov nruab nrab tuaj yeem tawm tsam nrog qhov siab tshaj plaws - qhov uas seem yuav kim heev.

Specification Checklist ua ntej koj kos npe

Siv daim ntawv txheeb xyuas no los txo qis kev pheej hmoo ua haujlwm thiab ua kom cov lus pom zoo sib piv:

• Khoom txhais: alloy / qib ntau, tuaj thickness, lub hom phiaj thickness, dav ntau yam, kauj ID / OD, max kauj qhov hnyav, qhov yuav tsum tau ua.
• Tolerance lub hom phiaj: thickness kam rau ua, crown / flatness kev cia siab, nto defect txwv, coil tsim kom zoo.
• Kab ceev xav tau: yam tsawg kawg nkaus / siab tshaj qhov ceev, acceleration profile, xav tau txhua hnub throughput.
• Automation Scope: gauge tswj mus kom ze, kev sib koom tes nro, daim ntawv qhia kev cia, tswb keeb kwm, cov neeg siv kev tso cai, kev pab cuam tej thaj chaw deb.
• Kev ntsuas pob: thickness gauge hom/qhov chaw, flatness/shape ntsuas (yog xav tau), ntsuas kub, ntaub ntawv logging xav tau.
• Utilities thiab footprint: fais fab, dej, compressed cua, coolant system qhov chaw, foundation yuav tsum, crane nkag.
• Wear-part strategy: yob cov ntaub ntawv thiab cov khoom seem, bearings thiab seals, lim, twj, sensors, txhuas lub sij hawm rau qhov tseem ceeb.
• Kev lees txais: txhais cov kev xeem coils, ntsuas txoj kev, thiab qhov "pass" zoo li ua ntej xa khoom thiab tom qab kev teeb tsa.

Installation, Commissioning, thiab Ramp-Up

Ntau lub mills "ua tsis tau" tsis yog vim cov khoom siv tsis zoo, tab sis vim tias kev ua haujlwm tau nrawm lossis qis dua. Kev qhuab ntuas kev qhuab ntuas tiv thaiv koj cov txiaj ntsig thiab koj pab neeg:

• Foundation thiab kev sib tw ua ntej: misalignment tsim kev co, bearing coj, thiab inconsistent thickness. Txheeb xyuas cov kauj ruam sib dhos thiab cov ntaub ntawv.
• Qhuav khiav thiab interlock validation: kuaj kev ruaj ntseg interlocks, threading logic, nres thaum muaj xwm ceev, thiab sensor checks ua ntej strip puas tau nkag mus rau hauv kab.
• Progressive dov kev sim: pib nrog cov khoom siv yooj yim dua thiab txo qis qis, ces txav mus rau cov hom phiaj thinner thiab qib nyuaj dua li kev ruaj ntseg zoo dua.
• Kev cob qhia neeg ua haujlwm nrog cov xwm txheej tiag tiag: muaj xws li strip break recovery, tail-out handle, coolant troubleshooting, and thickness drift diagnosis.
• Kev ntsuas cov ntaub ntawv: log thickness thiab nro tiam sis; tune tswj loops raws li cov kev ua haujlwm tiag tiag es tsis yog qhov chaw pib.

Kev tu thiab kev tswj xyuas tus nqi

A Sawb Rolling Milluas ua tau raws li spec nyob rau hnub ib tseem xav tau cov txheej txheem kev qhuab qhia kom ua raws li spec rau lub hlis tom qab. Tsom ntsoov rau cov khoom tu uas cuam tshuam ncaj qha rau qhov zoo thiab lub sijhawm ua haujlwm:

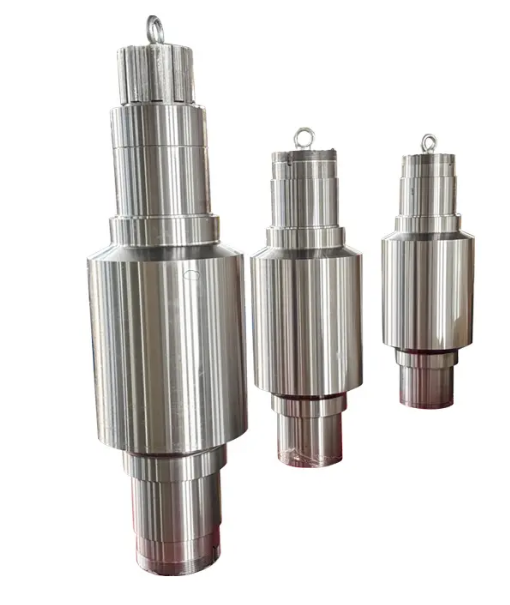

• Roll tswj: Kev sib tsoo zoo ib yam, kev tshuaj xyuas saum npoo, thiab kev khaws cia. Taug qab yob lub neej thiab cov qauv tsis xws luag los ntawm yob txheej.
• Coolant thiab filtration: tswj kom muaj zog thiab huv si; kho pom zoo li cov cuab yeej zoo, tsis yog siv hluav taws xob xwb.
• Bearings thiab seals: saib xyuas qhov kub thiab txias; hloov cov ntsaws ruaj ruaj proactively tiv thaiv kev puas tsuaj.
• Calibration: teem caij calibration rau thickness ntsuas thiab nro sensors thiaj li tswj system nyob trustworthy.
• Kev qhuab qhia Spare xeem: Tshuag tseem ceeb hnav qhov chaw; pom zoo rau lub sij hawm coj mus kuaj thiab cov lej ua ntej, ua ntej koj nyob rau hauv lub sij hawm poob.

Yuav Tau Txais Dab Tsi Los Ntawm Tus Neeg Siv Khoom Zoo

Xaiv lub zeb zoo kuj yog xaiv tus khub mus sij hawm ntev. Tus neeg muag khoom muaj peev xwm yuav tsum tuaj yeem piav qhia tsis yog "qhov peb muag," tab sis "peb pab koj ntaus spec." Hauv kev sib tham nrog Jiangsu Youzha Machinery Co., Ltd., piv txwv li, koj yuav tsum xav kom muaj kev sib txuas lus meej ntawm kev xaiv kev teeb tsa, tswj cov peev txheej, kev txhawb nqa kev txhawb nqa, cov ntaub ntawv, thiab kev npaj cov khoom seem-vim cov no yog cov levers uas ua rau koj cov kab ruaj khov tom qab pab pawg teeb tsa tawm.

Nug kom paub meej txog cov txheej txheem: yuav pom zoo li cas cov sijhawm dhau los, cov kev ntsuas twg suav nrog, kev daws teeb meem li cas, thiab cov ntaub ntawv qhia dab tsi uas koj cov neeg ua haujlwm yuav tau txais. Cov neeg muag khoom muaj zog tshaj plaws hais lus hauv cov txiaj ntsig tau zoo: tsawg dua qhov tsis lees paub, tsawg dua strips, kev ruaj ntseg sai dua tom qab hloov coil, thiab qhov kev saib xyuas qhov rais.

FAQ

Dab tsi yog qhov laj thawj loj tshaj plaws uas lub sawb dov zeb ua rau qhov tsis sib xws?

Feem ntau qhov tsis sib xws yog los ntawm kev sib xyaw ua ke ntawm qhov tsis ruaj khov, qeeb lossis tsis zoo ntsuas ntsuas ntsuas, thiab cov teebmeem thermal (yob thiab strip kub hloov). Ib txoj hauv kev-theem-kev ntsuas, tswj cov lus teb, thiab cov khoom siv kho tshuab ruaj khov-feem ntau daws nws qhov kev ntseeg siab dua "ntau zog."

Kuv tuaj yeem txo cov ntug nthwv dej li cas thiab txhim kho flatness?

Flatness teeb meem feem ntau xav tau kev sib koom tes zoo dua thiab cov tswv yim zoo uas phim koj cov khoom siv thiab qhov dav. Yog tias flatness yog qhov tseem ceeb ntawm cov neeg siv khoom xav tau, npaj rau kev ntsuas cov duab thiab kev tswj hwm tus qauv tsim rau koj cov khoom sib xyaw.

Kuv puas yuav tsum xaiv lub tshuab thim rov qab lossis lub tshuab tandem?

Yog tias koj khiav ntau qib thiab qhov ntau thiab tsawg nrog kev hloov pauv tsis tu ncua, thim rov qab mills tuaj yeem hloov tau. Yog tias koj qhov kev xav tau dhau los siab thiab koj cov khoom sib xyaw ua ke ruaj khov, txoj hauv kev tandem tuaj yeem xa cov khoom tsim tau zoo dua. Qhov kev xaiv zoo yog nyob ntawm koj "nyuaj coil" ntxiv rau koj cov phiaj xwm tsim khoom txhua hnub.

Cov khoom siv hluav taws xob thiab cov cuab yeej txhawb nqa dab tsi feem ntau underestimated?

Lub peev xwm lim dej txias, dej zoo, lub zog ruaj khov, thiab kev nkag mus rau crane feem ntau underestimated. Cov no cuam tshuam ncaj qha rau saum npoo zoo, yob lub neej, thiab kev ceev ceev.

Kuv yuav sau cov txheej txheem lees paub uas tiv thaiv kuv li cas?

Txhais cov khoom xeem, lub hom phiaj thickness / flatness, ntsuas txoj kev, qauv loj, thiab khiav tej yam kev mob (ceev ntau, txo, coil luj). suav nrog dab tsi tshwm sim yog tias lub hom phiaj tsis raug thiab yuav ua li cas rov ntsuas dua tom qab kho.

Kaw Xav

Ib tug zoo xaivSawb Rolling MillTsis yog "yob strip" xwb - nws ruaj khov rau koj cov txheej txheem kom cov neeg ua haujlwm tuaj yeem ua haujlwm ruaj khov, ua tau zoo tuaj yeem kwv yees, thiab cov khoom seem tsis noj koj cov paj. Yog tias koj tab tom ntsuas kab tshiab lossis npaj kev hloov kho tshiab, kho qhov teeb tsa, tswj pob, thiab kev npaj txhawb nqa nrog koj cov khoom xav tau nyuaj tshaj plaws - tsis yog koj qhov yooj yim tshaj plaws.

Yog tias koj xav sib tham txog koj cov coil ntau yam, lub hom phiaj kam rau ua, thiab kev teeb tsa uas haum rau koj cov hom phiaj tsim khoom,tiv tauj pebpib ib tug tswv yim, spec-tsav kev sib tham nrog pab neeg ntawmJiangsu Youzha Machinery Co., Ltd.
